General description

Electroshield Samara is one of the leaders in production of complete transformer substations for voltage of 35, 110 and 220 kV.
Electroshield Samara manufactures modernized packaged modular transformer substations KTP SESH B(M) of voltage classes 35, 110 and 220 kV. Since 2005, the enterprise performs engineering, production and supply of indoor distribution substations for voltage of 35, 110 and 220 kV.

Technical information

The substations produced in Electroshield Samara reliably operate in all regions of the Russian Federation, near and far abroad. The substations are designed for all typical electric wiring diagrams applicable in the country. Substations for non-typical diagrams can be developed as well. Working, engineering and process flow documentation is developed taking into account the comments and proposals of design institutes and operating organizations. All metal structures for the equipment and rigid busbar are coated with hot zinc. Assembly on the installation site is made without welding as the bolted connections are used.

The design of the substations allows future step-by-step expansion without additional reconstruction work. Substation delivery as factory-assembled units allows to reduce significantly installation time, improve product quality, and increase equipment performance reliability. The main part of high voltage apparatus is manufactured in production sites of Electroshield Samara and the equipment of Russian and foreign manufacturers is used. Standard and -non standard units of the metal structures ensure the guaranteed compatibility of the applied equipment. They are provided with rigid busbar which has improved resistance to wind, ice, seismic loads.

Rigid busbar can be delivered either within substation or separately. Substation can be fully equipped with systems of Relay Protection and Automation, Process Automation, Automated Measuring and Information System for Electric Power Fiscal Accounting. Most of the substation elements are integrated into the digital substation concept and meet the requirements of IEC 61850.

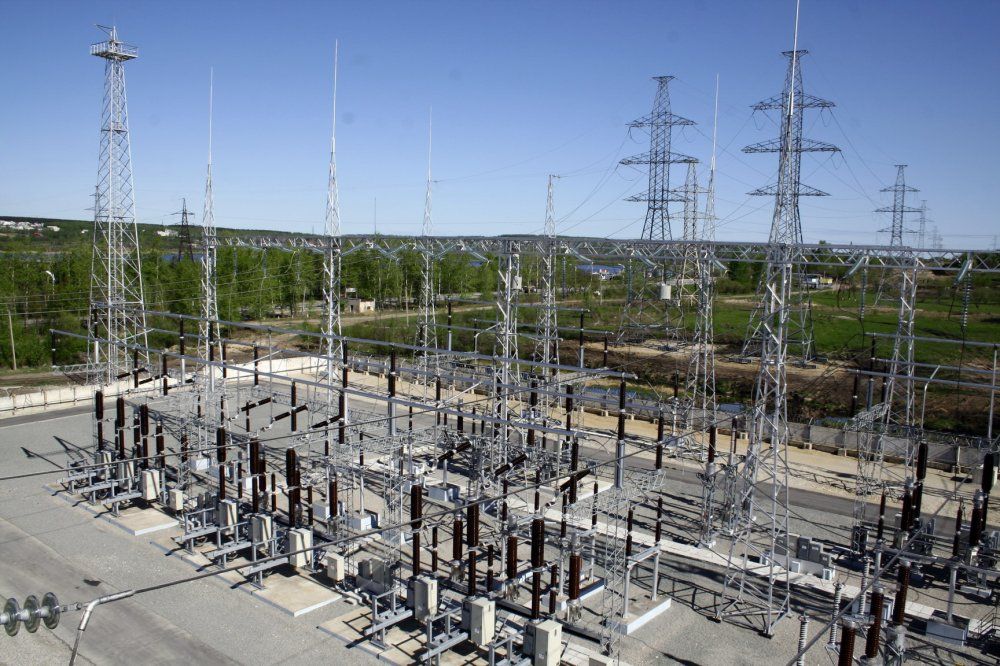

Complete transformer substation of block type, modernized KTP-SESH-B(M) 220/110/35 kV

Product type
KTP-SESH-B(M) 220 kV KTP-SESH-B(M) 110 kV KRUE-SESH 110 kV KTP-SESH-B(M) 35 kV KTP-SESH-P(M) 35 kV
Product type principal wiring diagrams 1, 3H, 4H, 5H, 5AH, 6, 6H, 7, 8, 9, 9H, 9AH, 12, 12H, 13, 13H, 14, 16, 17 1, 3H, 4H, 5H, 5AH, 6, 6H, 8, 9, 9H, 9AH 1, 3H, 4H, 5A, 5AH, 6, 6H, 7, 8, 9, 9H, 9AH, 12, 12H, 13, 13H 1, 3H, 4H, 5A, 5B, 5AH, 9 3H, 4H, 5A, 5B, 5H, 5AH
Rated voltage on HV/MV/LV side, kV 220/110(35;20) / 35(10;6) 110/35(20) / 35(10;6) 110 35 / - / 10(6) 35 / - / 10(6)
Rated current of collecting buses, A 1 000; 2 000 1 000; 2 000 2 500; 3 150 630 630
Transformer power, kVA 6 300 - 125 000 6 300 - 63 000 6 300 - 125 000 1 000 - 16 000 1 000 - 10 000
Disconnector operation Manual, automatic or combined Manual, automatic or combined Combined, automatic and manual Manual, automatic or combined Manual, automatic or combined

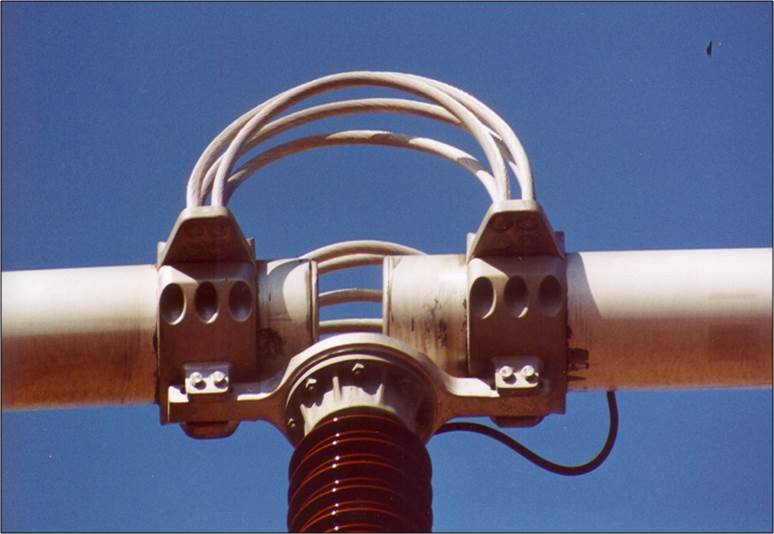

OZH-SESH rigid busbar

Product type OZH-SESH 35 OZH-SESH 110 OZH-SESH 150 OZH-SESH 220
Rated voltage, kV 35 110 150 220
Rated current, A 1000; 2000; 3150 1000; 2000; 3150 1000; 2000; 3150 1000; 2000; 3150
Busbar short-time electrodynamic current (impact value, less than 0.1 s) 64; 81; 128 81; 102; 128 81; 102; 128 81; 102; 128
Busbar short-time withstand current for 3 s, kA 25; 31,5; 40 31,5; 40; 50 31,5; 40; 50 31,5; 40; 50
Insulation level as per GOST 15163-96 Normal, Increased Normal, Increased Normal, Increased Normal, Increased
