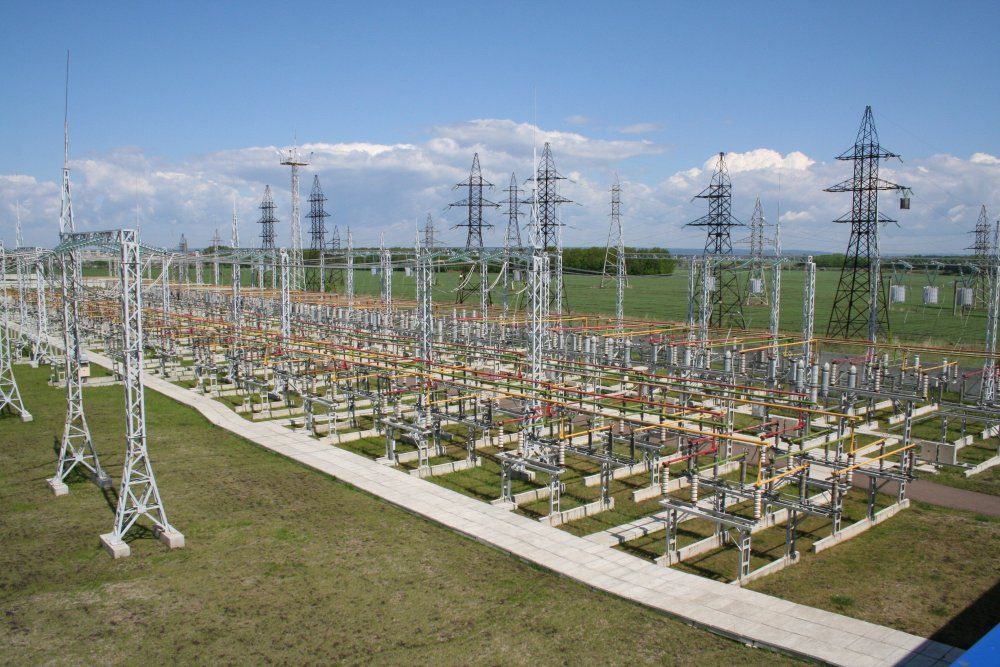

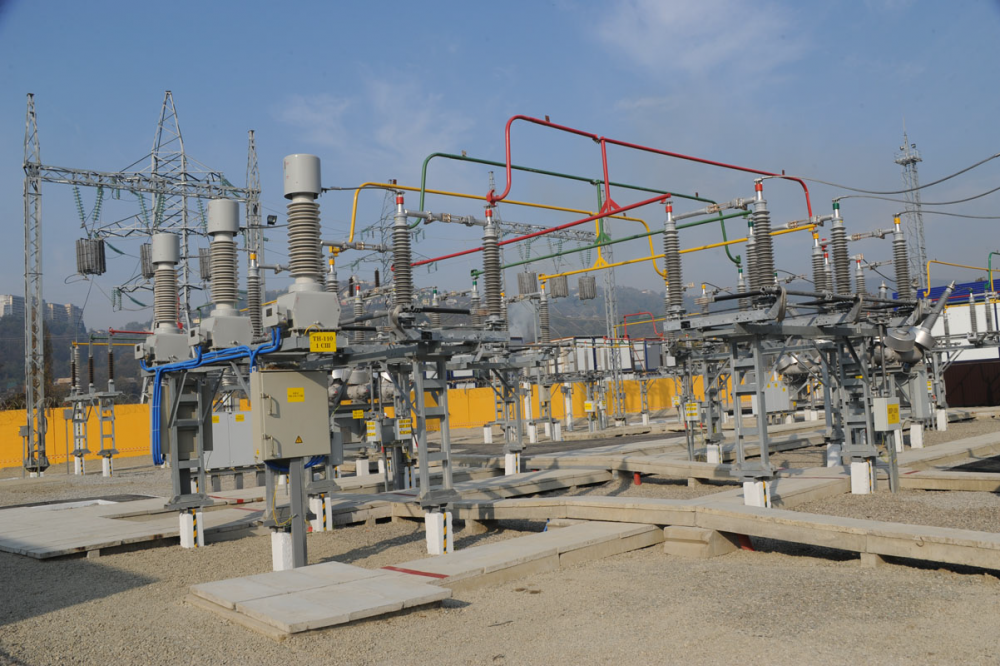

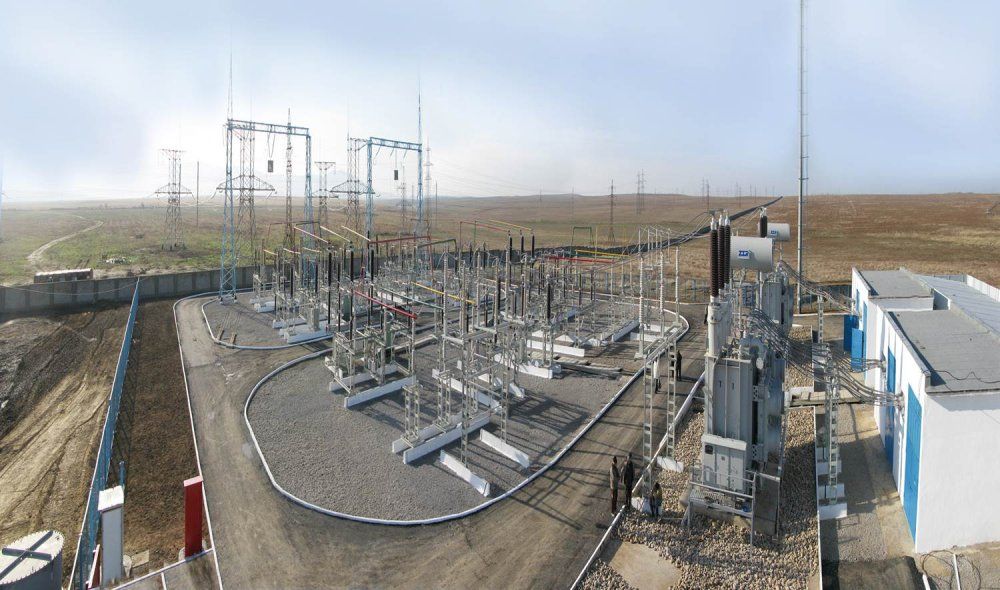

Complete transformer substation KTP-SESH-B(M) 220/110/35/10(6)
Rated voltage at higher side, kV
110; 220
Rated voltage at secondary side, kV
35
Rated voltage at lower side, kV
10 (6)
Power of the power transformer kVA
up to 125 000
Rated current of the busbar, A
1 000; 2 000
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Price on request
In stock
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Description
If you want to take a comprehensive approach to solving the issue of power supply of a large facility, then one of the most convenient and reasonable options for you may be modular complete transformer substation KTP-SESH-B(M) 220/110/35/10(6) manufactured by Electroshield Samara. For several decades of production, our company has carefully improved the design, supplemented it with the most advanced technologies and got powerful and reliable equipment. Our MCTS are ready for any tasks in the transformation and distribution of energy in power systems, transport infrastructure, oil and gas industry and other industries.Experienced in reliable operation for more than 30 years.
Work in a wide temperature range from -60 ° to + 40 ° C.
High earthquake resistance: 9 points on MSK-64.
Complete delivery, along with equipment supplied lighting masts, portals, lightning arresters, fence.
The possibility of transporting blocks by any type of transport, both railway and road.
Substation is supplied with ready-made units, which eases and shortens the time of installation of the substation.
It has automatic control system.
Possibility to control the substation using the remote control.
Technical information
| Specifications | Value |
|---|---|
| Rated voltage at higher side, kV | 110; 220 |
| Rated voltage at secondary side, kV | 35 |
| Rated voltage at lower side, kV | 10 (6) |
| Power of the power transformer kVA | up to125 000 |
| Rated current of the busbar, A | 1 000; 2 000 |
| Electrodynamic stability current, kA | 26; 65; 80; 102; 128 |
| Thermal stability current, kA | 10; 25; 31,5; 40; 50 |
Technical information
| Specifications | Value |
|---|---|
| Rated voltage at higher side, kV | 110; 220 |
| Rated voltage at secondary side, kV | 35 |
| Rated voltage at lower side, kV | 10 (6) |
| Power of the power transformer kVA | up to125 000 |
| Rated current of the busbar, A | 1 000; 2 000 |
| Electrodynamic stability current, kA | 26; 65; 80; 102; 128 |
| Thermal stability current, kA | 10; 25; 31,5; 40; 50 |
Complete transformer substation KTP-SESH-B(M) 220/110/35/10(6)
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
List of accessories:
