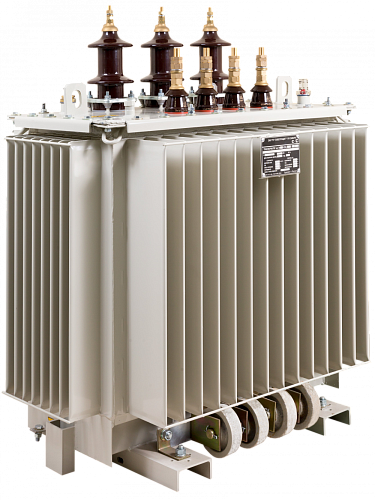

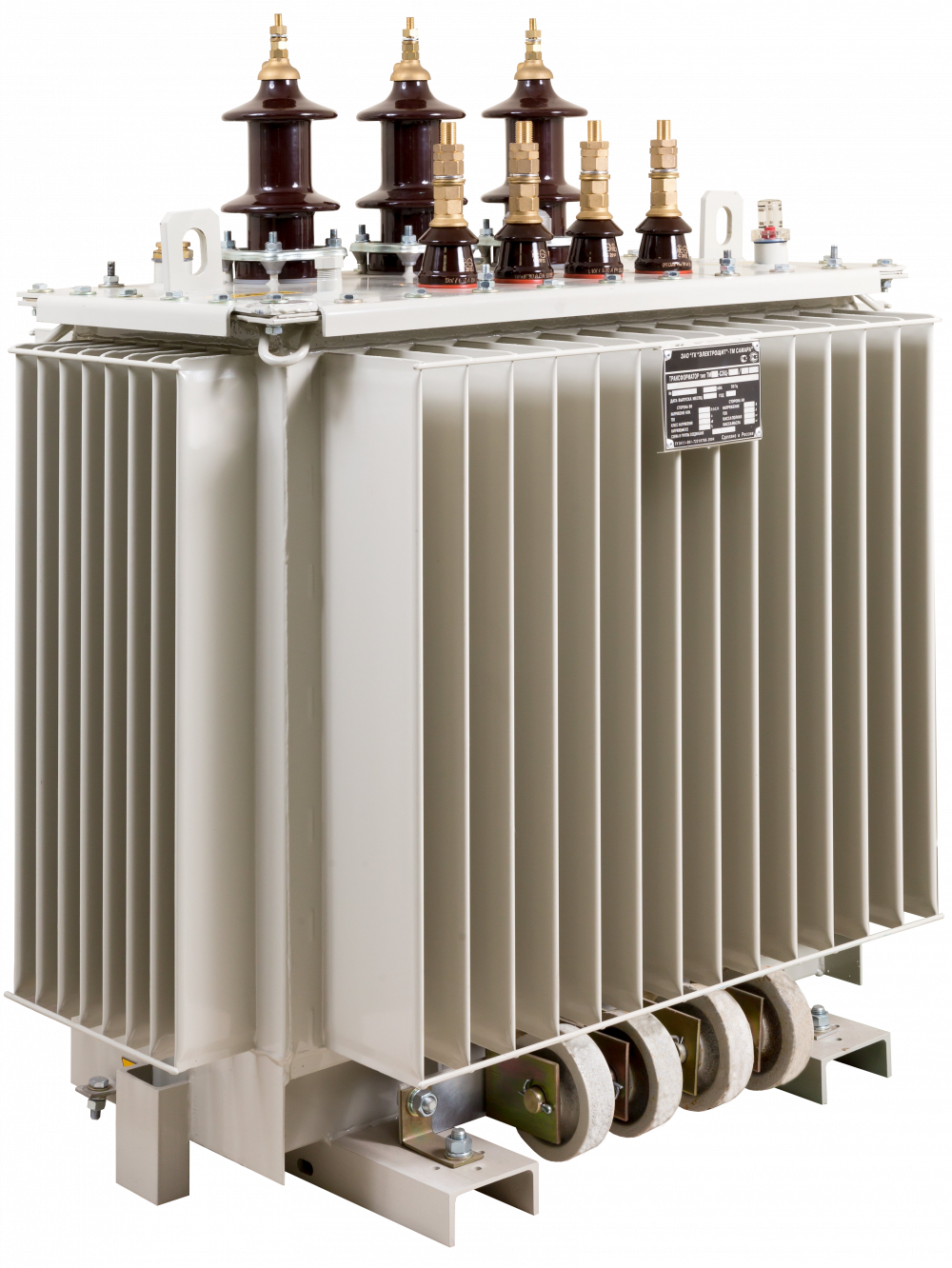

TM(G)(F)-SESH 25 - 2 500 kVA 6, 10, 15, 20, 35 kV
Series
01; 11
Power, kVA
100 - 2 500
Voltage class HV, kV
15; 20; 35
Connection diagram
Y/Yн-0, Δ/Yн-11
Climate version, placement category
UHL1; T1
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Price on request
In stock
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Description
Transformers TM-SESH, TMG-SESH, TMF-SESH, TMGF-SESH capacity 25 - 2 500 kVA. Switching branches without excitation windings of a PBV. Cooling system type "M". Working conditions - in the open air.
Transformer series
- 11 – standard series;
- 12 – series with reduced indicators of load losses and short circuit;
- 15 – matching series.
- Modern lines of transverse cutting are equipped with blocks of plates of the core, which reduces losses in the transformer.
- Reduced bulk-mass characteristics of transformers.
- Application of multistage tightness control.
Technical information
| Name/Design | TM(G) | TMG |
|---|---|---|
| Series | 01; 11 | 15 |
| Power, kVA | 100 - 2 500 | 400 - 2 500 |
| Voltage class HV, kV | 15; 20; 35 | 10 |
| Connection diagram | Y/Yн-0, Δ/Yн-11 | Y/Yн-0, Δ/Yн-11, Y/Δ-11, Δ/Δ-0 |
| Climate version, placement category | UHL1; T1 | UHL1; T1 |
