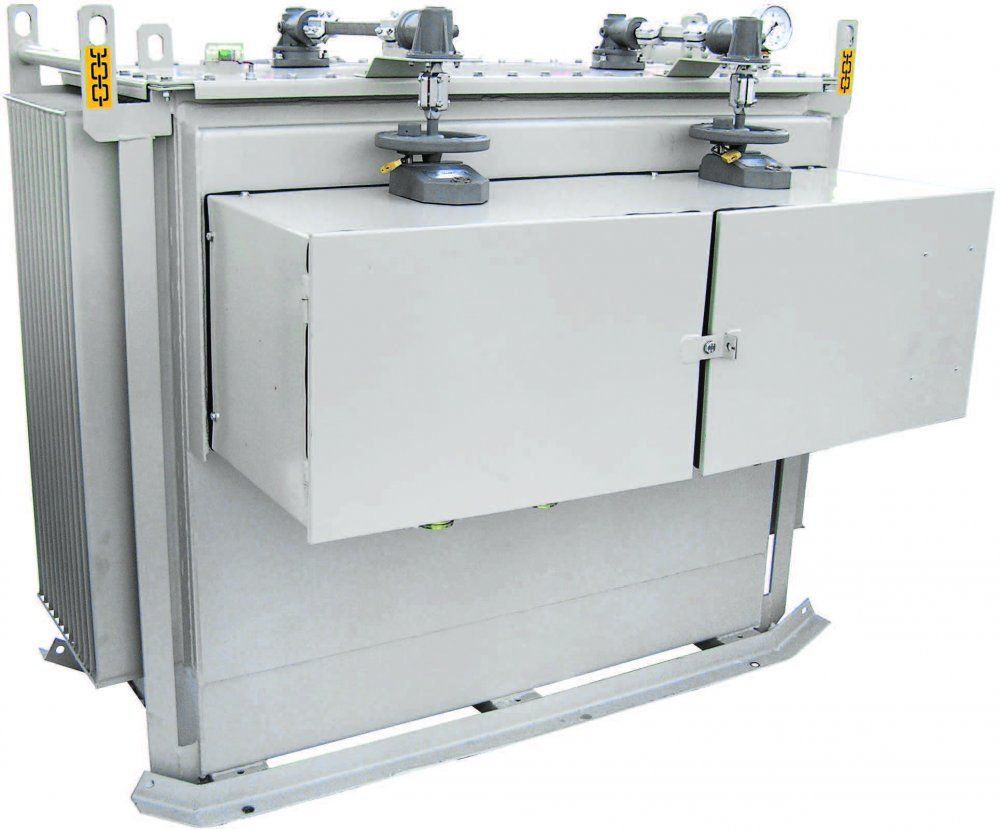

TMPNG-SESH 63 - 1 200 kVA 3, 6 kV
Power, kVA
63-1 200
Voltage class HV, kV
3, 6
Voltage class LV, kV
0,4
Connection diagram
Yн/Yн-0; Yн/Δ-11; Δ/Y-11
Number of control stages
Up to 49
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Price on request
In stock
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Description
Transformers for electric submersible pumps oil production TMPG implementation capacity 63-1200 kVA. Voltage class 3, 6 kV. Switching of branches of windings without excitation of the PBR. Cooling system type "M". Working conditions - in the open air.
Series of transformers:
- 11 - standard series;
- 12 - series with reduced indicators of load losses and short circuit.
- Possibility of realization to 49 steps of switching.
- 12 series reduced up to 30% losses for standard lines.
- The use of multi-stage leakage test.
- Modern lines of transverse cutting are equipped with blocks of plates of the core, which reduces losses in the transformer.
Technical information
| Name | Series | Power, kVA | Voltage class HV, kV | Voltage class LV, kV | Connection diagram | Number of control stages |
|---|---|---|---|---|---|---|
| TMPNG-SESH | 11 | 63-1 200 | 3, 6 | 0,4 | Yн/Yн-0; Yн/Δ-11; Δ/Y-11 | Up to 49 |
| TMPNG-SESH | 12 | 100-1 000 | 3, 6 | 0,4 | Yн/Yн-0 | Up to 49 |
Documents
Download all
Catalog
TMPNG in english for the website_August 2025
Document date: 19.08.2025
Format: PDF
Size: 9.68 Мб
Technical information
| Name | Series | Power, kVA | Voltage class HV, kV | Voltage class LV, kV | Connection diagram | Number of control stages |
|---|---|---|---|---|---|---|
| TMPNG-SESH | 11 | 63-1 200 | 3, 6 | 0,4 | Yн/Yн-0; Yн/Δ-11; Δ/Y-11 | Up to 49 |
| TMPNG-SESH | 12 | 100-1 000 | 3, 6 | 0,4 | Yн/Yн-0 | Up to 49 |
