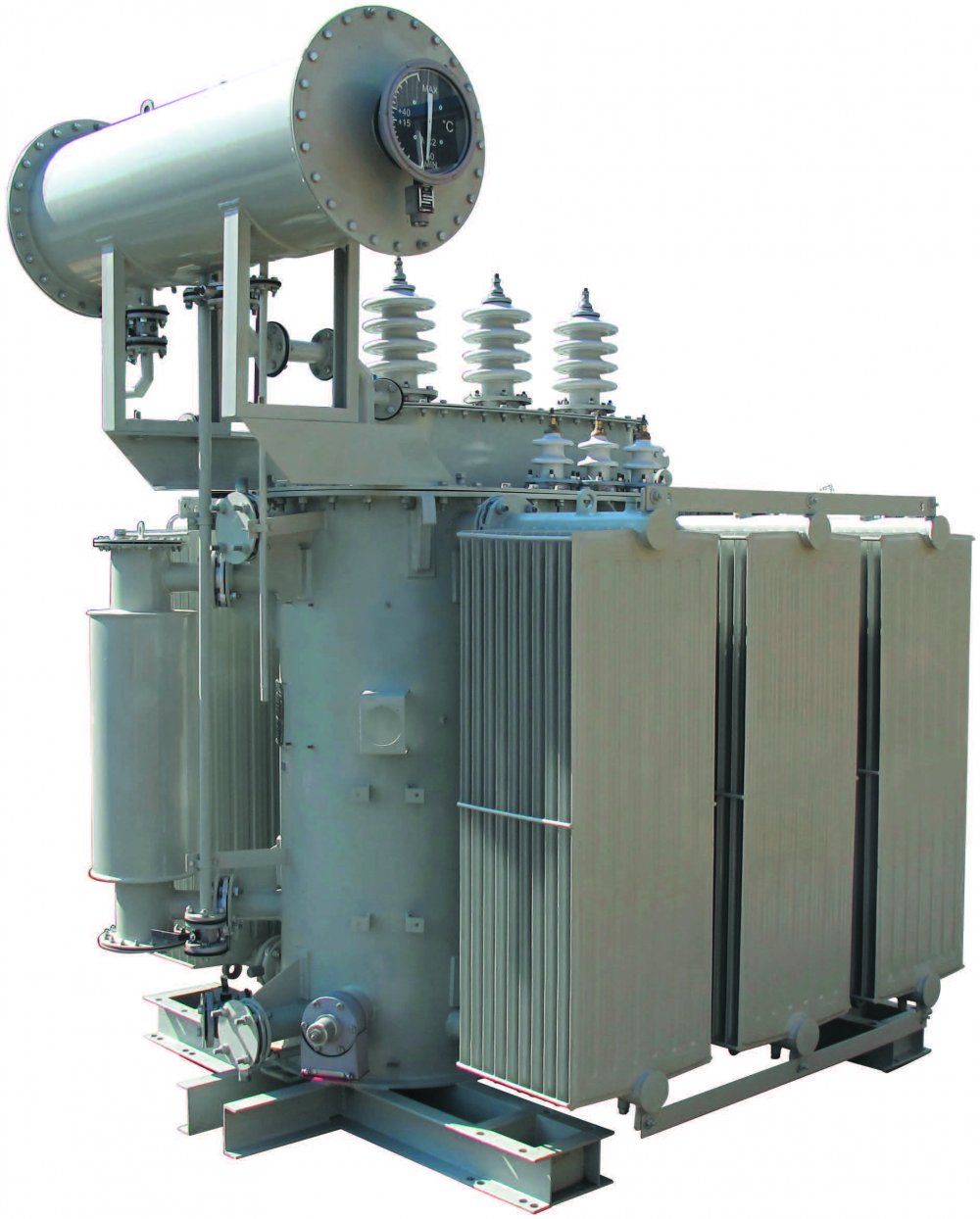

TM(N)-SESH 1 000 - 6 300 kVA 35 kV
Power, kVA
1 000
Voltage HV/LV, kV
35/6,30; 35/10,50; 35/11,00;
Connection diagram
Y/Δ-11
Type, range and number of voltage regulation stages on the HV side
NLTC ±2х2,5%
Idling losses, W
2 000
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Price on request
In stock
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Description
Transformers TM-SESH, TM(N)-SESH capacity of 1 000-6 300 kVA. ТМ(N) SESH - with voltage adjustment under the load RPN. TM-SESH - with switching branches without excitation windings of a PBV. Cooling system type "M".
Transformers TM-SESH, TM(N)-SESH 35 kV are designed for operation in electrical networks of complete transformer substations. Working conditions - in the open air.
- Is possible to install a thermometer that has the ability to enter up to 4 temperature values and has signal feed contacts for ASUTP.
- Used the switching device RPN, provide a high guaranteed reliability.
- Installation of a pressure relief valve having contacts for feeding a signal to the ASUTP.
Technical information
| Name | Power, kVA | Voltage HV/LV, kV | Connection diagram | Type, range and number of voltage regulation stages on the HV side | Idling losses, W | Short-circuit losses, W | Short circuit voltage, % |
|---|---|---|---|---|---|---|---|
| TM-SESH | 1 000 | 35/6,30; 35/10,50; 35/11,00; | Y/Δ-11 | NLTC ±2х2,5% | 2 000 | 11 600 | 6,5 |
| TM-SESH | 1 600 | NLTC±2х2,5% | 2 750 | 11 600 | 6,5 | ||
| TM-SESH | 2 500 | NLTC±2х2,5% | 3 900 | 16 500 | 6,5 | ||
| TM-SESH | 4 000 | NLTC±2х2,5% | 5 300 | 16 500 | 7,5 | ||
| TM-SESH | 6 300 | NLTC±2х2,5% | 7 600 | 23 500 | 7,5 | ||
| TM(N)-SESH | 1 000 | OLTC±4х2,5% | 2 100 | 23 500 | 6,5 | ||
| TM(N)-SESH | 1 600 | OLTC±4х2,5% | 2 900 | 33 500 | 6,5 | ||
| TM(N)-SESH | 2 500 | OLTC±4х2,5% | 4 100 | 33 500 | 6,5 | ||
| TM(N)-SESH | 4 000 | OLTC±4х2,5% | 5 600 | 46 500 | 7,5 | ||
| TM(N)-SESH | 6 300 | OLTC±4х2,5% | 8 000 | 46 500 | 7,5 |
Technical information
| Name | Power, kVA | Voltage HV/LV, kV | Connection diagram | Type, range and number of voltage regulation stages on the HV side | Idling losses, W | Short-circuit losses, W | Short circuit voltage, % |
|---|---|---|---|---|---|---|---|
| TM-SESH | 1 000 | 35/6,30; 35/10,50; 35/11,00; | Y/Δ-11 | NLTC ±2х2,5% | 2 000 | 11 600 | 6,5 |
| TM-SESH | 1 600 | NLTC±2х2,5% | 2 750 | 11 600 | 6,5 | ||
| TM-SESH | 2 500 | NLTC±2х2,5% | 3 900 | 16 500 | 6,5 | ||
| TM-SESH | 4 000 | NLTC±2х2,5% | 5 300 | 16 500 | 7,5 | ||
| TM-SESH | 6 300 | NLTC±2х2,5% | 7 600 | 23 500 | 7,5 | ||
| TM(N)-SESH | 1 000 | OLTC±4х2,5% | 2 100 | 23 500 | 6,5 | ||
| TM(N)-SESH | 1 600 | OLTC±4х2,5% | 2 900 | 33 500 | 6,5 | ||
| TM(N)-SESH | 2 500 | OLTC±4х2,5% | 4 100 | 33 500 | 6,5 | ||
| TM(N)-SESH | 4 000 | OLTC±4х2,5% | 5 600 | 46 500 | 7,5 | ||
| TM(N)-SESH | 6 300 | OLTC±4х2,5% | 8 000 | 46 500 | 7,5 |
