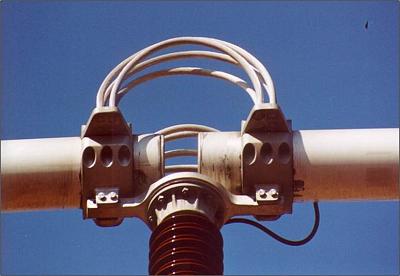

Rigid Busbar OZH-SESH
Rated voltage, kV
35; 110; 150; 220
Rated current, A
630; 1 250; 2 000; 3 150
Electrodynamic stability current, kA
65; 80; 102; 128
Thermal stability current for 3 second, kA
25; 31,5; 40; 50
Insulation level in accordance with GOST 1516.3-96
Normal / Increased
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Price on request
In stock
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Description
Rigid busbar is used in outdoor and indoor substations with voltage at 35, 110 and 220 kV for the electrical connection between high voltage equipment. The use of bus gantries with flexible busbar arrangement and, therefore, foundations installation are not required. Thus, you get saving on the construction site of the power facility, reduced costs for construction and installation works, as well as material saving.No maintenance required.
Allows to compensate inaccuracies of significant limits during block installation.
Easy to assemble and dismantle if necessary.
Works in a wide temperature range from -60°C to +40°C.
High earthquake resistant: 9 points on MSK-64.
Can be delivered in any convenient transportation method.
Technical information
| Specifications | Value |
|---|---|
| Rated voltage, kV | 35; 110; 150; 220 |
| Rated current, A | 630; 1 250; 2 000; 3 150 |
| Electrodynamic stability current, kA | 65; 80; 102; 128 |
| Thermal stability current for 3 second, kA | 25; 31,5; 40; 50 |
| Insulation level in accordance with GOST 1516.3-96 | Normal / Increased |
Technical information
| Specifications | Value |
|---|---|
| Rated voltage, kV | 35; 110; 150; 220 |
| Rated current, A | 630; 1 250; 2 000; 3 150 |
| Electrodynamic stability current, kA | 65; 80; 102; 128 |
| Thermal stability current for 3 second, kA | 25; 31,5; 40; 50 |
| Insulation level in accordance with GOST 1516.3-96 | Normal / Increased |
Rigid Busbar OZH-SESH
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
