Complete transformer substation KTP-SESH-B(M) 220/110/35/10(6)

Complete transformer substation KTP-SESH-B (M) 220/110/35/10 (6) is used in power systems, industrial enterprises, mining and processing plants, infrastructure facilities.

Contact us

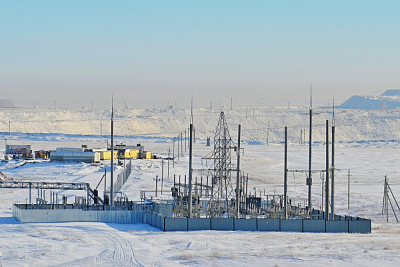

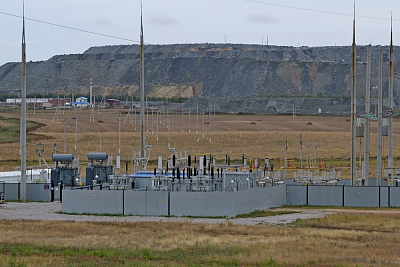

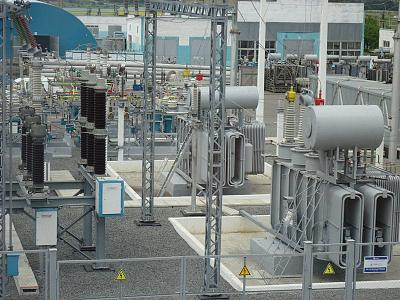

Complete transformer substation KTP-SESH-B(M) 220/110/35/10(6) - фото 1 Complete transformer substation KTP-SESH-B(M) 220/110/35/10(6) - фото 2 Complete transformer substation KTP-SESH-B(M) 220/110/35/10(6) - фото 3
General description
Technical information

Advantages

  • Experienced in reliable operation for more than 30 years.
  • Work in a wide temperature range from -60° to + 40 °C.
  • High earthquake resistance: 9 points on MSK-64.
  • Complete delivery, along with equipment supplied lighting masts, portals, lightning arresters, fence.
  • The possibility of transporting blocks by any type of transport, both railway and road.
  • Substation is supplied with ready-made units, which eases and shortens the time of installation of the substation.
  • It has automatic control system.
  • Possibility to control the substation using the remote control.

Technical Characteristics

Specifications
Value
Rated voltage at higher side, kV
110; 220
Rated voltage at secondary side, kV
35
Rated voltage at lower side, kV
10 (6)
Power of the power transformer kVA
up to 125 000
Rated current of the busbar, A
1 000; 2 000
Electrodynamic stability current, kA
26; 65; 80; 102; 128
Thermal stability current, kA
10; 25; 31,5; 40; 50

List of sets of equipment

Accessory equipment
10 kV 35 kV 110 kV 220 kV
Circuit breaker
VVU-SESH
VVN-SESH
VGT-110      VGT-220
Disconnector

RGPZ-SESH
RN-SESH
RN-SESH
Transformer
TMG-SESH
NAMI;
TOL-SESH
NKF-110; TFZM-110
ATDTSTN-63000/220/110;
NAMI-220; TFZM-220
Condenser units

UKL 56-6.3-450


Contact us

Technical Characteristics

Specifications
Value
Rated voltage at higher side, kV
110; 220
Rated voltage at secondary side, kV
35
Rated voltage at lower side, kV
10 (6)
Power of the power transformer kVA
up to 125 000
Rated current of the busbar, A
1 000; 2 000
Electrodynamic stability current, kA
26; 65; 80; 102; 128
Thermal stability current, kA
10; 25; 31,5; 40; 50
