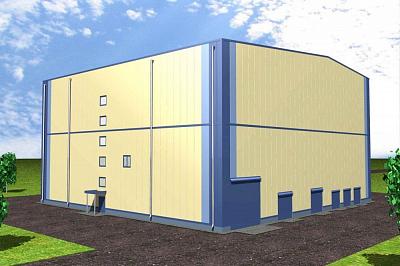

- Attractive appearance.
- Compact substation area.
- Easy for maintenance.
- The light weight of the structure comparing to the buildings made of reinforced concrete reduce the construction cost of foundation.
Advantages
Technical Characteristics
|
Specifications |
Value |
|
Rated voltage at higher side, kV |
110 |
|
Rated voltage at lower side, kV |
10 |
|
Power of the power transformer kVA |
up to 63 000 |
|
Standard scheme of the substation |
110-4N, 110-5N, 110-5AN |
|
Building size, m² |
40х36 |
|
Ambient air temperature, °C |
-60˚ +40˚ |
|
Number of sections in the building |
2 |
List of sets of equipment
|
Accessory equipment |
Name |
| Circuit breaker |
VGT-110 |
|
Disconnector |
RN-SESH 110 |
|
Voltage transformer |
NKF-110 |
|
Current transformer |
TFZM-110 |
|
Vacuum circuit breaker |
VVU-SESH-P 10 |
