Complete transformer substation KTP-SESH-B(M) 35/6(10)

Complete transformer substation KTP-SESH-B(M) 35/6 kV has proven itself and is widely used by oil companies. It is designed for power supply of well pad. On the 35 kV side there are KRU-SESH-70 cubicles in a modular building, the 6 kV side is provided by KRU-SESH-70 cubicles in a modular building. TMN-SESH is used as power transformer.

Contact us

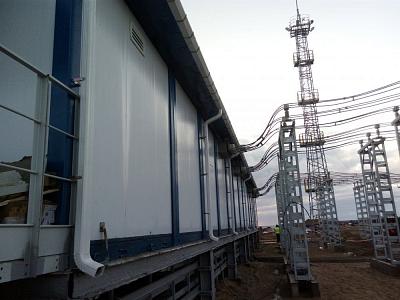

Complete transformer substation KTP-SESH-B(M) 35/6(10) - фото 1
General description
Technical information

Advantages

  • Ensuring the highest possible prefabrication of equipment.
  • Minimum installation, adjustment and commissioning time period.
  • High level of safety when servicing in any time of year.
  • Occupied space significant reduction.
  • Remote control and diagnostics of the substation.

Technical Characteristics


Specifications
Value
Rated voltage at higher side, kV
35
Rated voltage at lower side, kV
6, 10
Rated current at higher side, A 1 000; 1 250; 2 000; 2 500
Rated current at lower side, A
1 000; 1 250; 2 000; 2 500; 3 150; 4 000
Thermal stability current for 3s at higher side, kA 20; 25; 31.5
Thermal stability current for 3s at lower side, kA
20; 25; 31.5; 40
Power of the power transformer kVA
2 500; 4 000; 6 300; 10 000

Contact us

Technical Characteristics


Specifications
Value
Rated voltage at higher side, kV
35
Rated voltage at lower side, kV
6, 10
Rated current at higher side, A 1 000; 1 250; 2 000; 2 500
Rated current at lower side, A
1 000; 1 250; 2 000; 2 500; 3 150; 4 000
Thermal stability current for 3s at higher side, kA 20; 25; 31.5
Thermal stability current for 3s at lower side, kA
20; 25; 31.5; 40
Power of the power transformer kVA
2 500; 4 000; 6 300; 10 000
