Complete transformer substation KTP-SESH-B(M) 35/6

Classical outdoor switchgear KTP-SESH-B(M) 35/6 kV is used by oil-producing companies. It is intended for electric supply to well pads. A reliable product is successfully used in all climatic zones. Domestic equipment is used and installed.

Contact us

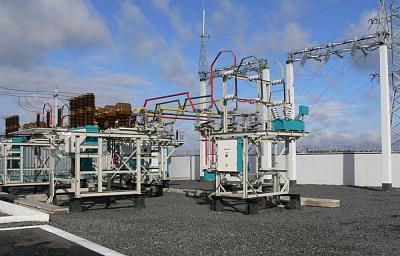

Complete transformer substation KTP-SESH-B(M) 35/6 - фото 1 Complete transformer substation KTP-SESH-B(M) 35/6 - фото 2
General description
Technical information

Advantages

  • Durability. Experience in reliable operation for more than 30 years.
  • Works in a wide temperature range from -60° to + 40°C.
  • High earthquake resistant: 9 points on MSK-64.
  • Complete delivery. Along with the equipment, lighting masts, portals, lightning conductors, fencing are supplied.
  • Possibility of transporting blocks by any type of transport, both railway and road.
  • Shortened installation time, the substation is delivered as ready-made units.
  • Possibility to control the substation using remote control.
  • Easy "reading" of the substation scheme by the service personnel. 35 kV equipment is installed in the form of outdoor switchgear.

Technical Characteristics

Specifications
Value
Rated voltage at higher side, kV
35
Rated voltage at lower side, kV
10(6)
Power of the power transformer kVA
2 500; 4 000; 6 300; 10 000
Rated current of 35Kv circuit, A
1 000; 1 600
Short circuit current through 35 kV, kA
20
Thermal stability current for 3s, kA
10
Number of 6kV cubicles, unit
20
Ambient air temperature, °C -60˚
+40˚

List of sets of equipment

Accessory equipment
10(6) kV 35 kV
Circuit breaker      VVU-SESH
VVU-SESH
Transformer

TMN-SESH; TOL-SESH; ZNOL-SESH; TZRL-100

Contact us

Technical Characteristics

Specifications
Value
Rated voltage at higher side, kV
35
Rated voltage at lower side, kV
10(6)
Power of the power transformer kVA
2 500; 4 000; 6 300; 10 000
Rated current of 35Kv circuit, A
1 000; 1 600
Short circuit current through 35 kV, kA
20
Thermal stability current for 3s, kA
10
Number of 6kV cubicles, unit
20
Ambient air temperature, °C -60˚
+40˚
