Complete transformer substation KTP-SESH 35/10(6) kV

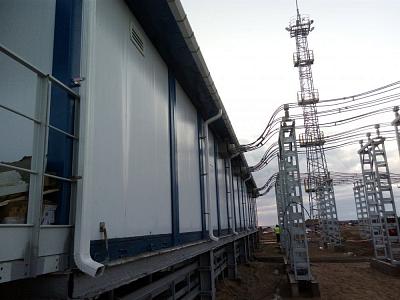

Indoor switchgear ZRU-SESH 35/10 (6) kV, is used by transportation. On 35 kV side there are KRU-SESH-65 cubicles in modular building, on 10 (6) kV side there are KRU-SESH-70 cubicles in a modular building. In the center of ZRU-SESH 35/10 (6) power transformers are installed in the module.

Cделать заказ
Добавить в список
 Complete transformer substation KTP-SESH 35/10(6) kV - фото 1
 Complete transformer substation KTP-SESH 35/10(6) kV - фото 1
Общее описание
Техническая информация

  • Attractive appeareance.
  • The equipment is installed indoors, which eliminates the impact on the equipment of the external environment and allows the maintenance of equipment inside the building.
  • KRU-SESH-65 has withdrawable part, which allows easy maintenance. Possible to be manufactured as a whole if necessary.
  • The possibility of transporting blocks by any type of transport, both railway and road.
  • Substation is supplied with ready-made units, which eases and shortens the time of installation of the substation.

Технические характеристики

Specifications
Value
Rated voltage at higher side, kV
35
Rated voltage at lower side, kV
10(6)
Power of the power transformer kVA
2 500; 4 000; 6 300; 10 000
Rated current of 35Kv circuit, A
1 000; 1 600
Short circuit current through 35 kV, kA
20
Thermal stability current for 3s, kA
10
Number of 6kV cubicles, unit
20
Ambient air temperature, °C -60˚
+40˚

Перечень комплектующей аппаратуры

Accessory equipment
10(6) kV 35 kV
Circuit breaker      VVU-SESH
VVU-SESH
Transformer

TMN-SESH; TOL-SESH; ZNOL-SESH; TZRL-100

Технические характеристики

Specifications
Value
Rated voltage at higher side, kV
35
Rated voltage at lower side, kV
10(6)
Power of the power transformer kVA
2 500; 4 000; 6 300; 10 000
Rated current of 35Kv circuit, A
1 000; 1 600
Short circuit current through 35 kV, kA
20
Thermal stability current for 3s, kA
10
Number of 6kV cubicles, unit
20
Ambient air temperature, °C -60˚
+40˚
