KRU-SESH-59 (KRUN) 6,10 kV

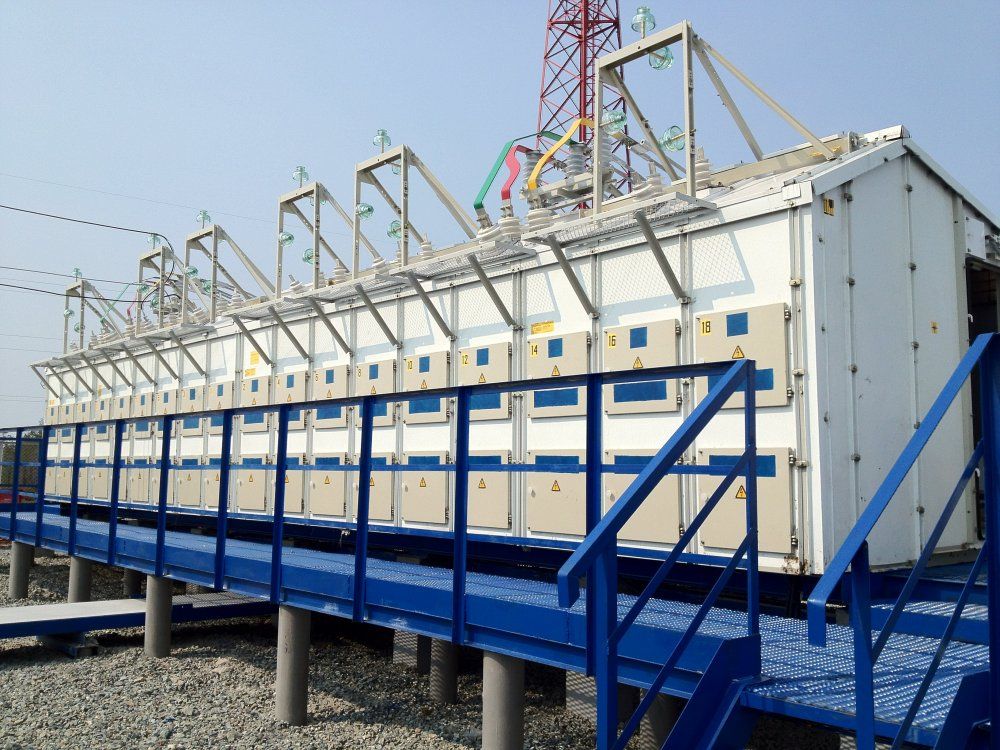

Efficient and completely safe distribution of three-phase alternating current with power frequency of 50 and 60 Hz with voltage 6 and 10 kV in any situation is the main purpose for which the complete device of KRU-SESH-59 (KRUN) model is intended. Due to the peculiarities of its modular construction it can operate in open pit mines, drilling installations and other hard-to-reach objects in the severest climatic conditions. Several decades of experience for the equipment creation similar to KRUN 6, 10 kV help now Electroshield Samara to produce the equipment that was recognized not only in Russia but also abroad.

General description

Technical information

Advantages

Highly prefabricated product within the limits of transport units.
Minimum scope of work and costs for installation works on site.
Provision with forced ventilation, electric convectors, thermal curtains, air conditioners and split systems to create optimal working conditions for maintenance personnel (upon customer request).
Possibility to transport on the sledges of the factory construction and production, for example, within oil and gas regions or extractive open pit mines including the possibility to use the sledges as a foundation during operation (upon customer request).
Availability of brackets for overhead entries with rigid busbar preventing mechanical influence on the bushing insulators from the flexible busbar of the substation 6(10) kV side.
Availability of the device of OPU-SESH-59 type for low voltage equipment including without limitation to the equipment with intolerably large dimensions in depth when placing them in KRUN control aisle.

Technical Characteristics

Specifications	KRU-SESH-59 U1	KRU-SESH-59 HL 1	KRU-SESH-59 BR HL1K
Rated voltage, kV	6; 10	6; 10	6
Rated current of the main circuits of KRU cells,A	630; 1 000; 1 600	630; 1 000; 1 600; 2 000; 3 150	80; 400; 630
Rated current built in KRU, kA	up to 31,5	up to 31,5	up to 31,5
Height, mm	3120	3395	4160
Height (without input line bracket), mm	2725	2780	2780
Width,mm	3100	3200	3380
Width on breaking current	3300	3200	-
Length, mm	Depends on number of cabinets in the KRU

List of sets of equipment

Accessory equipment	Name
Vacuum circuit breaker	VVE-SESH; VVU-SESH; LF-1
Relay protection and automation	BMRZ; Electromechanics
Voltage transformers	ZNOL-SESH; NOL-SESH; NALI-SESH
Auxiliary transformers	TMG-SESH; OLS-SESH; TSL-SESH
Current transformers	TOL-SESH; TSHL-SESH
Zero sequence current transformers	TZLK-SESH
Surge arrester	OPN-P-6 (10)
*A complete list of equipment used in KRU-SESH-59 can be viewed in TI

Technical Characteristics

Specifications	KRU-SESH-59 U1	KRU-SESH-59 HL 1	KRU-SESH-59 BR HL1K
Rated voltage, kV	6; 10	6; 10	6
Rated current of the main circuits of KRU cells,A	630; 1 000; 1 600	630; 1 000; 1 600; 2 000; 3 150	80; 400; 630
Rated current built in KRU, kA	up to 31,5	up to 31,5	up to 31,5
Height, mm	3120	3395	4160
Height (without input line bracket), mm	2725	2780	2780
Width,mm	3100	3200	3380
Width on breaking current	3300	3200	-
Length, mm	Depends on number of cabinets in the KRU
