TOL-SESH 10, 20, 35 kV

TOL-SESH 10, 20, 35 kV

Measuring transformer of current basic TOL-SESH for 10, 20, 35 voltage classes for signal transmission of measuring information to the measuring instruments, automation, signaling and control. Transformer TOL-SESH is installed in cubicle switchgear KRU-SESH. Transformer have climate version "U", “UXL”, “T” and category 2 and 1 according to GOST 15150-69.

Contact us

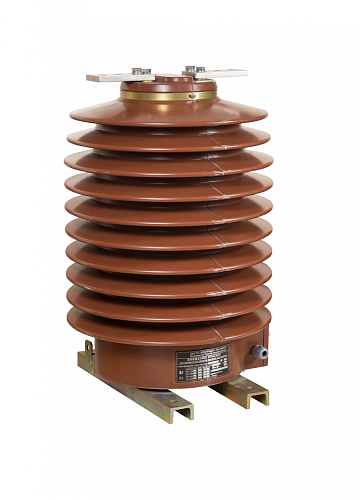

TOL-SESH 10, 20, 35 kV - фото 1
General description
Technical information

Advantages

  • Making of transformers for indoor and outdoor installation.
  • Degree of protection IP54 for transformers of outdoor installation for 35 voltage class.
  • The range includes compact performance “M”.
  • Application of fabrication technology “RITZ”.
  • Opportunity of making secondary winding by a flexible wire.
  • Wide ranges of nominal limit multiplicity and safety factor of devices.

Technical Characteristics

Specifications
Value
Voltage class, kV
10;20;35
Rated primary current, A
5-3000
Rated secondary current, A
1; 5
Quantity of secondary windings
up to 6
Nominal accuracy class for protection
5P; 10P
Nominal factor of safety devices secondary winding for Kbna measurements
in 2 up to 35
Nominal accuracy class for measurements and accounting
0,2; 0,2S; 0,5; 0,5S;1; 3; 5; 10

Contact us

Technical Characteristics

Specifications
Value
Voltage class, kV
10;20;35
Rated primary current, A
5-3000
Rated secondary current, A
1; 5
Quantity of secondary windings
up to 6
Nominal accuracy class for protection
5P; 10P
Nominal factor of safety devices secondary winding for Kbna measurements
in 2 up to 35
Nominal accuracy class for measurements and accounting
0,2; 0,2S; 0,5; 0,5S;1; 3; 5; 10
