ZNOL-SESH 6, 10, 15, 20, 35 kV

ZNOL-SESH 6, 10, 15, 20, 35 kV

Voltage transformers ZNOL-SESH-6, ZNOL-SESH-10 – grounded, intended for installation in switchgear and control gears (KRU) of indoor and outdoor installation, as well as in one-sided collection chambers (KSO), are components.

Contact us

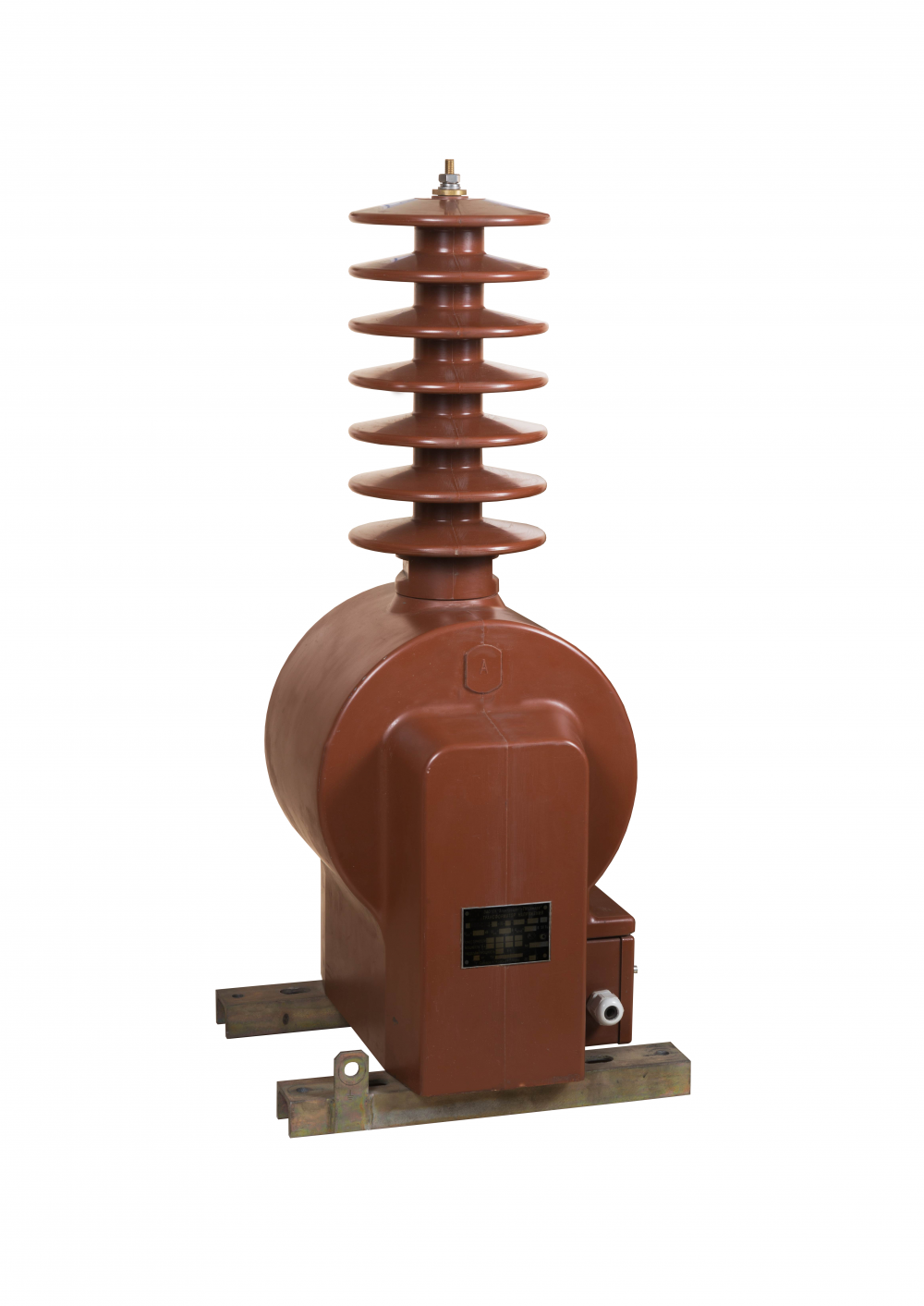

ZNOL-SESH 6, 10, 15, 20, 35 kV - фото 1
General description
Technical information

Advantages

  • Transformers can be manufactured with a safety device.
  • Manufacturing of transformers for indoor and outdoor installation.
  • Transformers of outdoor installation can operate in air pollution degree IV as per GOST 9920-89.
  • Possibility of manufacturing a small-sized transformer.

Technical Characteristics

Specifications
Value
Voltage class, kV
6;10; 20; 35
Accuracy class of the main secondary winding
0,2; 0,5; 1,0; 3,0
Accuracy class of additional secondary winding
3; 3Р; 6Р
Nominal voltage of the main secondary winding, W
100/3
Nominal voltage of additional secondary winding, W
100/3; 100
Quantity of secondary windings
up to 3

Contact us

Technical Characteristics

Specifications
Value
Voltage class, kV
6;10; 20; 35
Accuracy class of the main secondary winding
0,2; 0,5; 1,0; 3,0
Accuracy class of additional secondary winding
3; 3Р; 6Р
Nominal voltage of the main secondary winding, W
100/3
Nominal voltage of additional secondary winding, W
100/3; 100
Quantity of secondary windings
up to 3
