TSHL-SESH 10, 20 kV
Voltage class, kV
10; 20
Rated primary current, A
600-6 000
Rated secondary current, A
1; 5
Quantity of secondary windings
up to 5
Nominal accuracy class for measurements and accounting
0,2; 0,2S; 0,5;0.5S
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Price on request
In stock
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Description

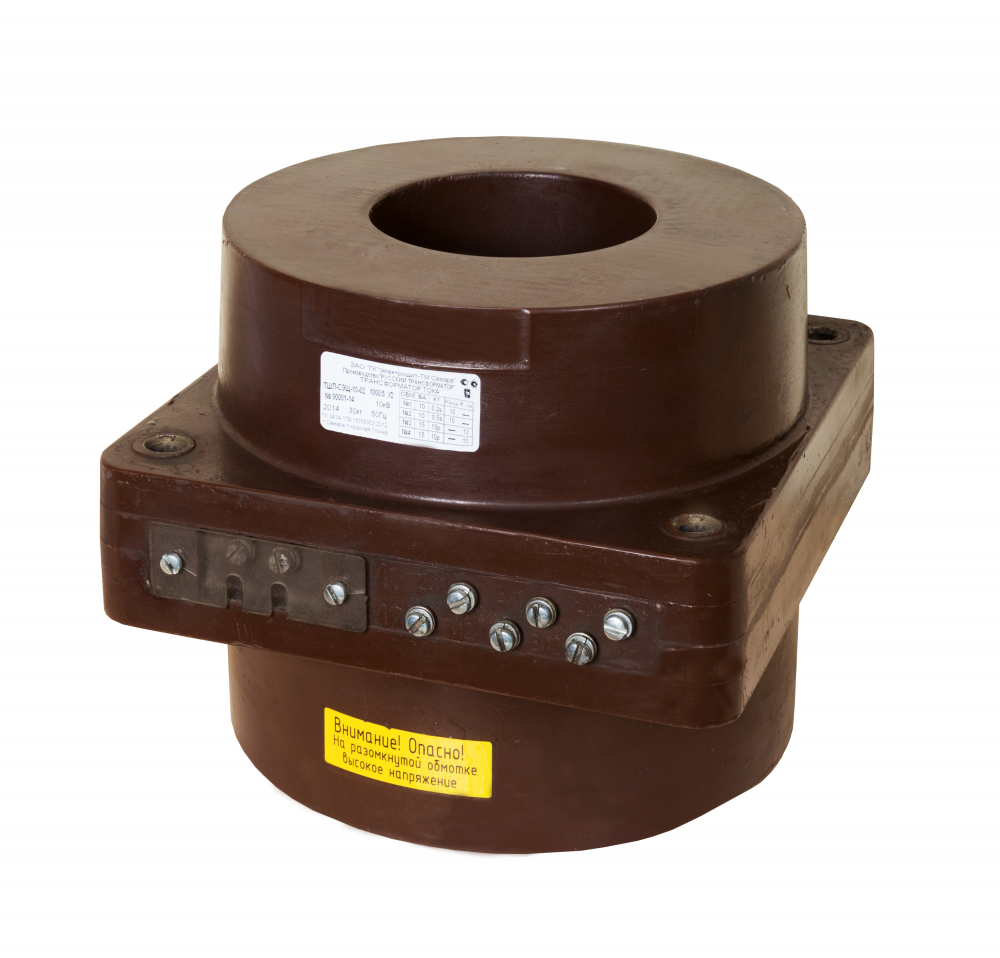

Measuring current bar-type transformer TSHL-SESH indoor installation for 10, 20 voltage class. Transformer is used for signal transmission of measuring information to the measuring instruments, protection of automation, signaling and control. TSHL-SESH is installed in cubicle switchgear KRU-SESH. TSHL-SESH 10, 20 kV have climate version "U", “T” and category 2 according to GOST 15150-69.
- Nomenclature width according to the proposed bus sizes, cable, location of secondary winding, primary currents.
- Opportunity of making secondary winding by a flexible wire.
- Wide ranges of nominal limit multiplicity and safety factor of devices.
Technical information
| Specifications | Value |
|---|---|
| Voltage class, kV | 10; 20 |
| Rated primary current, A | 600-6 000 |
| Rated secondary current, A | 1; 5 |
| Quantity of secondary windings | up to 5 |
| Nominal accuracy class for measurements and accounting | 0,2; 0,2S; 0,5;0.5S |
| Nominal accuracy class for protection | 5P; 10P |
| Nominal factor of safety devices secondary winding for Kbna measurements | 5; 10; 15; 20 |
| Operating temperature, °С | -45° +40° |
Technical information
| Specifications | Value |
|---|---|
| Voltage class, kV | 10; 20 |
| Rated primary current, A | 600-6 000 |
| Rated secondary current, A | 1; 5 |
| Quantity of secondary windings | up to 5 |
| Nominal accuracy class for measurements and accounting | 0,2; 0,2S; 0,5;0.5S |
| Nominal accuracy class for protection | 5P; 10P |
| Nominal factor of safety devices secondary winding for Kbna measurements | 5; 10; 15; 20 |
| Operating temperature, °С | -45° +40° |
