TPL-SESH 10 kV

TPL-SESH 10 kV

Measuring through transformer TPL-SESH for 10 voltage class. Transformer is used for signal transmission of measuring information to the measuring instruments, protection of automation, signaling and control. TPL-SESH-10 is installed in cubicle switchgear KRU-SESH. Transformer have climate version "U", “T” and category 2 according to GOST 15150-69.

Contact us

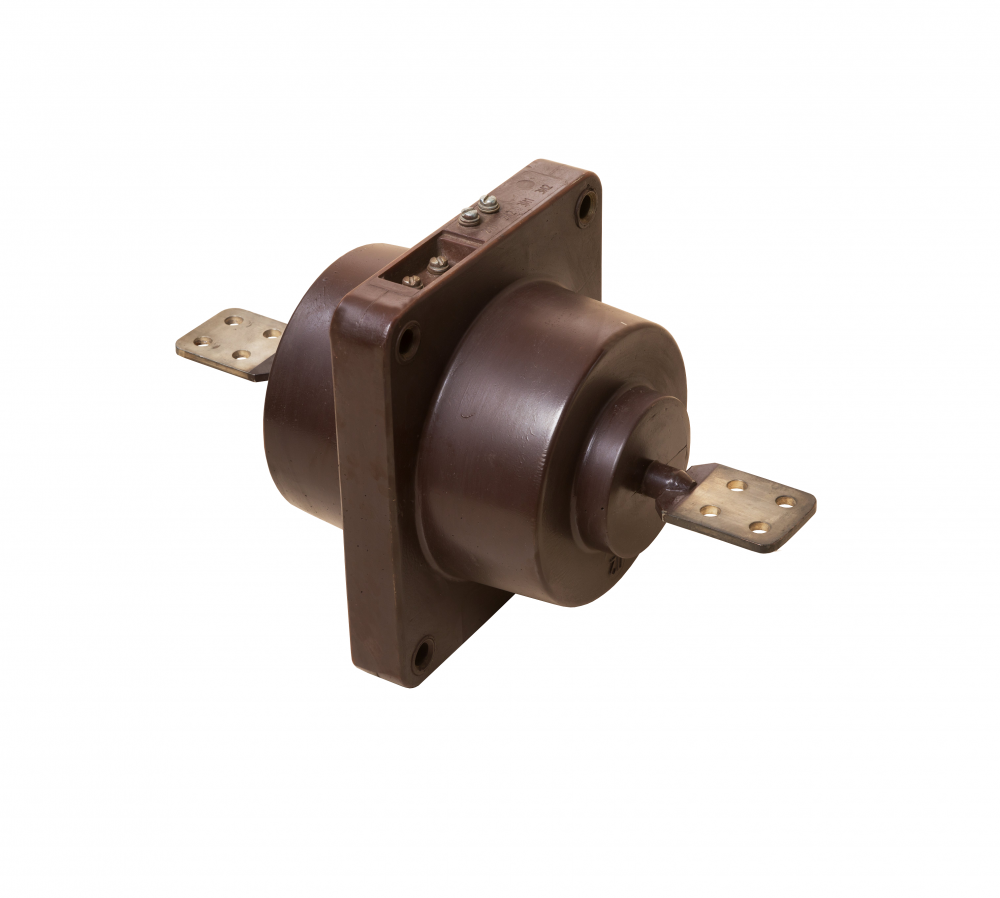

TPL-SESH 10 kV - фото 1
General description
Technical information

Advantages

  • The presence in the line through and supporting-pass transformers.
  • Opportunity of making secondary winding by a flexible wire.
  • Wide ranges of nominal limit multiplicity and safety factor of devices.

Technical Characteristics

Specifications
Value
Voltage class, kV
10
Rated primary current, A
5-2 000
Rated secondary current, A
1; 5
Quantity of secondary windings
up to 4

Contact us

Technical Characteristics

Specifications
Value
Voltage class, kV
10
Rated primary current, A
5-2 000
Rated secondary current, A
1; 5
Quantity of secondary windings
up to 4
