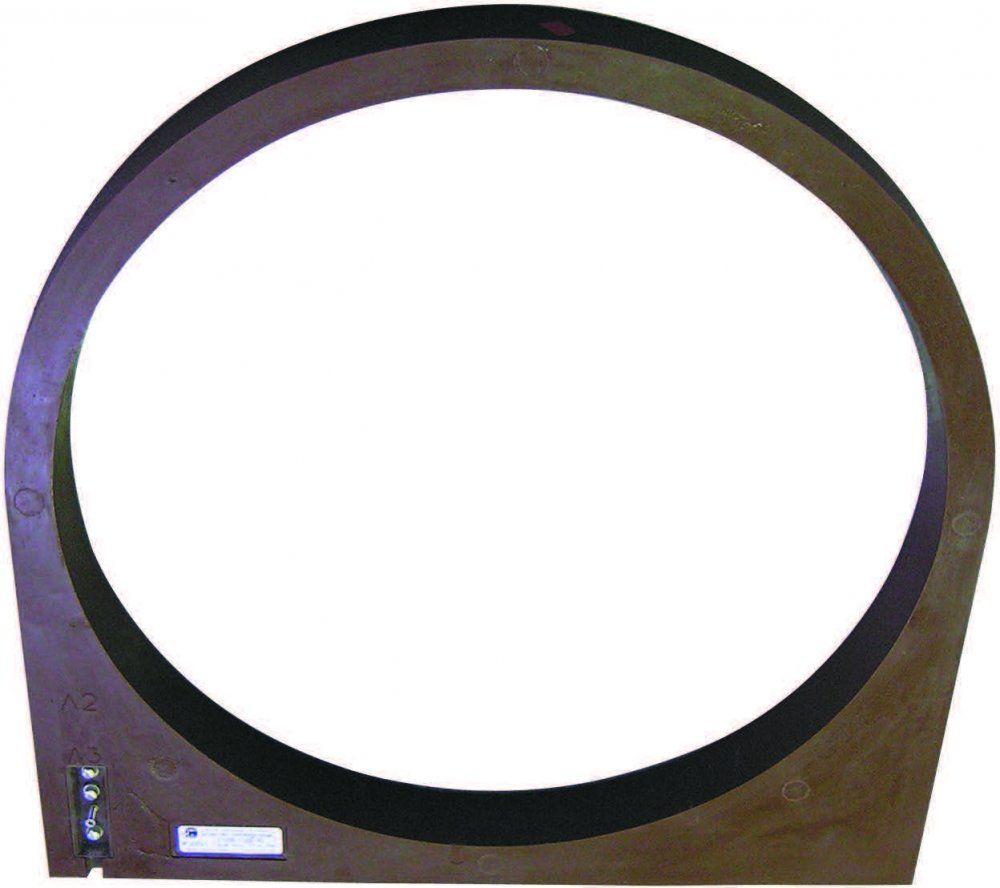

TZLV-SESH 10 kV
Voltage class, kV
10
Maximum operating voltage, kV
12
Rated frequency, Hz
50
Primary current of single-phase circuit, not more, А
500
Secondary current of single-phase circuit, not more, А
1,25
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Price on request
In stock
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Description
Current sensor zero-phase-sequence current transformer TZLV-SESH for 10 voltage class. Transformer TZLV-SESH is used for research VL 6-10 kV with a single-phase earth fault in networks with isolated and compensated neutral complete with the USZ-3S device. TZLV-SESH 10 kV is installed in cubicle switchgear KRU-SESH. Transformer have climate version "U", “T” and category 2 according to GOST 15150-69.
- Windings are defended with a protective cover.
- Application of fabrication technology “RITZ”.
- Assembly convenience of current sensing.
Technical information
| Specifications | Value |
|---|---|
| Voltage class, kV | 10 |
| Maximum operating voltage, kV | 12 |
| Rated frequency, Hz | 50 |
| Primary current of single-phase circuit, not more, А | 500 |
| Secondary current of single-phase circuit, not more, А | 1,25 |
Technical information
| Specifications | Value |
|---|---|
| Voltage class, kV | 10 |
| Maximum operating voltage, kV | 12 |
| Rated frequency, Hz | 50 |
| Primary current of single-phase circuit, not more, А | 500 |
| Secondary current of single-phase circuit, not more, А | 1,25 |
