TSHL-SESH 0,66 kV
Voltage class, kV
0,66
Rated primary current, A
150-5 000
Rated secondary current, A
1; 5
Number of secondary windings
1
Accuracy class for measurement and accounting
0,2; 0,2S;0,5; 0.5S; 1
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Price on request
In stock
Production time
Under the order
Total dimensions (HxWxD, cm)
...х...х...
Description

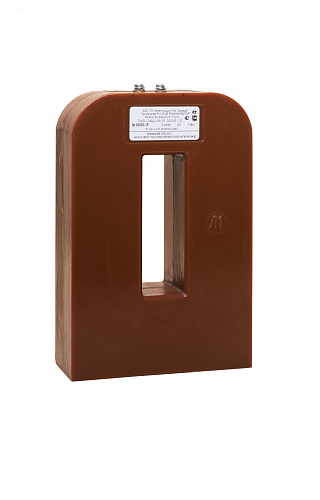

Measuring current bar-type transformer TSHL-SESH for voltage class 0,66 kV. The transformer is designed for transmitting the measurement information signal to the measuring instruments. The transformer is installed in low-voltage switchgear NKU-SESH. The transformers have climate version "U" and category 2 according to GOST 15150-69
- The secondary terminals are protected by a protective cover.
- The latitude range for the proposed sizes of busbar, cable, location secondary terminals, primary currents.
Technical information
| Specifications | Value |
| Voltage class, kV | 0,66 |
| Rated primary current, A | 150-5 000 |
| Rated secondary current, A | 1; 5 |
| Number of secondary windings | 1 |
| Accuracy class for measurement and accounting | 0,2; 0,2S;0,5; 0.5S; 1 |
| Accuracy class for protection | 5P; 10P |
| Nominal factor of safety devices secondary winding for Kbna measurements | 5;18 |
| Operating temperature, °С | -45° +40° |
Technical information
| Specifications | Value |
| Voltage class, kV | 0,66 |
| Rated primary current, A | 150-5 000 |
| Rated secondary current, A | 1; 5 |
| Number of secondary windings | 1 |
| Accuracy class for measurement and accounting | 0,2; 0,2S;0,5; 0.5S; 1 |
| Accuracy class for protection | 5P; 10P |
| Nominal factor of safety devices secondary winding for Kbna measurements | 5;18 |
| Operating temperature, °С | -45° +40° |
