KRU-SESH-65 (KRUN) 35 kV

KRU-SESH-65 (KRUN) 35 kV

Medium voltage primary air insulated switchgear KRU-SESH-65 is designed for receiving and distribution of electrical energy with rated voltage 35 kV. It is a cubicle in block-box with outdoor installation or indoor cubicle for capital buildings or modular buildings. It is used both as a separate switchgear and as a substation 220/35/10 (6), 110/35/10 (6), as a medium voltage switchgear, as an input device in complete transformer substations 35/10 (6 ) kV.

Contact us

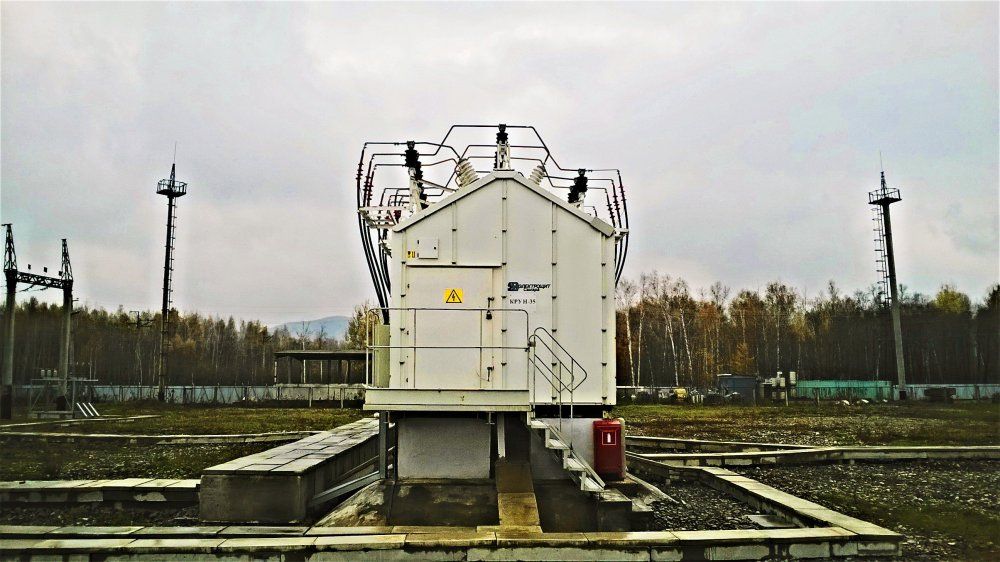

KRU-SESH-65 (KRUN) 35 kV - фото 1
General description
Technical information

Advantages

  • Cubicles inside modular building are protected from environment.
  • All major components (circuit breakers, current and voltage transformers, insulators) are made in Russia, manufactured at the same plant, which guarantees their reliable joint operation.
  • Cable or air input.

Technical Characteristics

Specifications
Value
Rated voltage, kV
35
Rated current, A
1 000,1 600
Rated withstand current, kA 25
Environment temperature, degree  -60˚  +40˚
Dimensions, mm (width × height × depth)
1500 х 1860(2950) х 2710

List of sets of equipment

Accessory equipment     Name
Vacuum circuit breaker
VVU-SESH
Voltage transformer
ZNOL-SESH
Current transformer
TOL-SESH

Contact us

Technical Characteristics

Specifications
Value
Rated voltage, kV
35
Rated current, A
1 000,1 600
Rated withstand current, kA 25
Environment temperature, degree  -60˚  +40˚
Dimensions, mm (width × height × depth)
1500 х 1860(2950) х 2710
