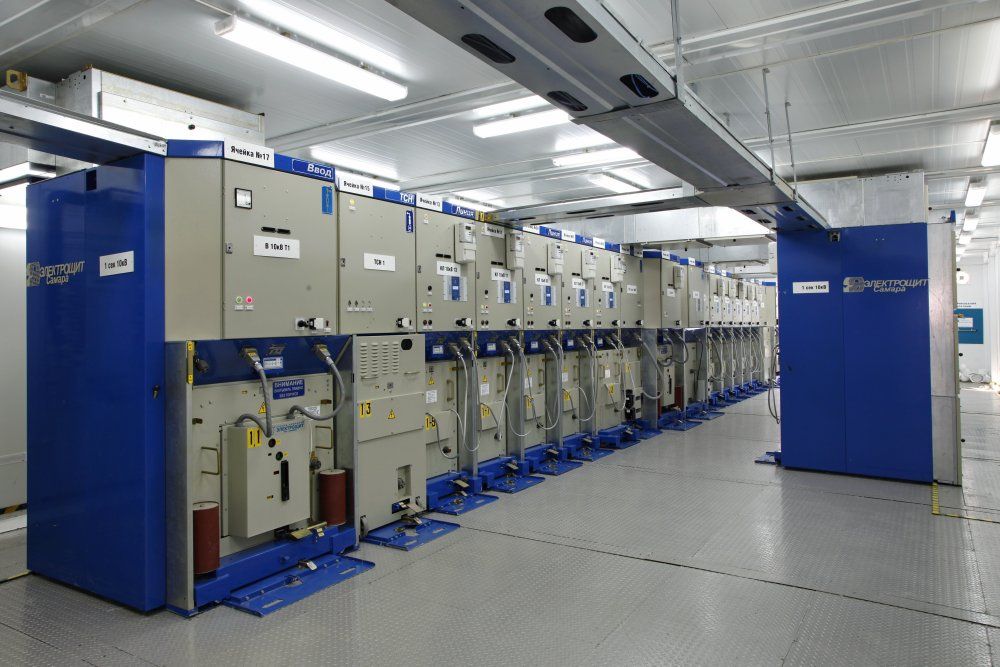

KRU-SESH-61M 6, 10 kV

KRU-SESH-61M 6, 10 kV

Switchgear and control gears of KRU-SESH-61M series are intended for receipt and distribution of electric energy of three-phase current with power frequency of 50 and 60 Hz with voltage 6(10) kV for currents 630-4,000 A. Lead-in cabinets and sectioning cabinets for currents 2,000-4,000 A KRU-SESH-61M are recommended to use in KRU-SESH-63 for input of high currents – more than 1,600 A. KRU-SESH-61M cabinets are joined with KRU-SESH-63 cabinets on the collecting buses without using junctions.
KRU-SESH-61M for NPP is intended for operation in a NPP system of class 20 (for emergency power supply systems) and 3H (for normal operation systems as per classification OPB-88/97 (PNAEG-01-011-97).

FIELDS OF APPLICATION

  • Oil and gas, coal and metallurgical industries;
  • Energocomplex power distribution networks;
  • Agriculture;
  • Industrial enterprises
  • Urban and municipal networks
  • Station auxiliaries system including NPP.


Contact us
KRU-SESH-61M 6, 10 kV - фото 1
General description
Technical information

Advantages

  • Two cabinets versions – with the door of the draw-out element compartment and without the door (with the facade sheet).
  • Circuit-breaker moving from the working position into the control position when the door is closed.
  • Possibility to install any vacuum and SF6 circuit-breakers and microprocessing protections.
  • Separate versions for NPP and tropical climate.

Technical Characteristics

Specifications
Value
Rated voltage, kV
6;10
Rated current, A
630 - 4 000
Rated withstand short-circuit current, kA
31,5; 40
Dimensions, mm (width × height × depth)
750(1 125)x1 340x2 268

List of sets of equipment

Accessory equipment Name
Vacuum circuit breakers   VVU-SESH
SF-6 breakers LF-2; LF-3
Current transformers
TOL-SESH; TSHL-SESH
Zero sequence current transformers
TZLK-SESH
Voltage transformers ZNOL-SESH; NOL-SESH
Auxiliary transformers OLS-SESH; TLS-SESH
Surge arrester OPN-P-6 (10)
