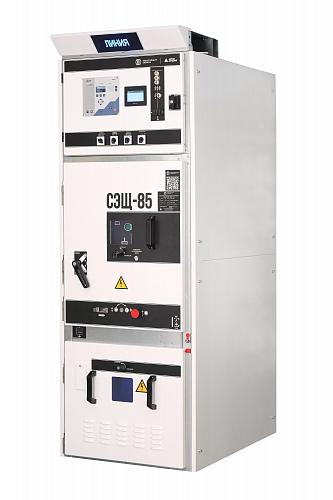

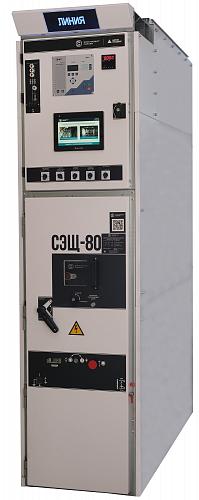

Primary and secondary MV switchgears

Main advantage of Electroshield-Samara as a builder of MV Switchgears is the ability to combine individual approach with the mass production speed. The plant is able to produce more than 1000 cubicles per month, and the significant part is produced upon the individual customer’s requests.

Main accessories (protection relays, vacuum circuit breakers, measuring transformers, voltage transformers, earthing switches) of own production.
Processing with electrophoretic prime coating method of painted metallic parts of cubicles that increases corrosion resistance.
Earthing switches with spring adjustment.
Tulips of circuit-breakers, their mating parts in the cabinet are made of copper with additional silver layer coating.
GOST certificates for the equipment and declaration of compliance.
ISO 9001 international quality management system compliance certificate.
Certification for JSC «FSK EEС» and JSC «Rosseti» confirmed.
Scope of Application
  • Oil, gas, coal and metallurgical industry;
  • Railway power supply;
  • Agricultural industry;
  • Urban, municipal and interregional distribution networks;
  • Auxiliary power plants systems which include NPP.

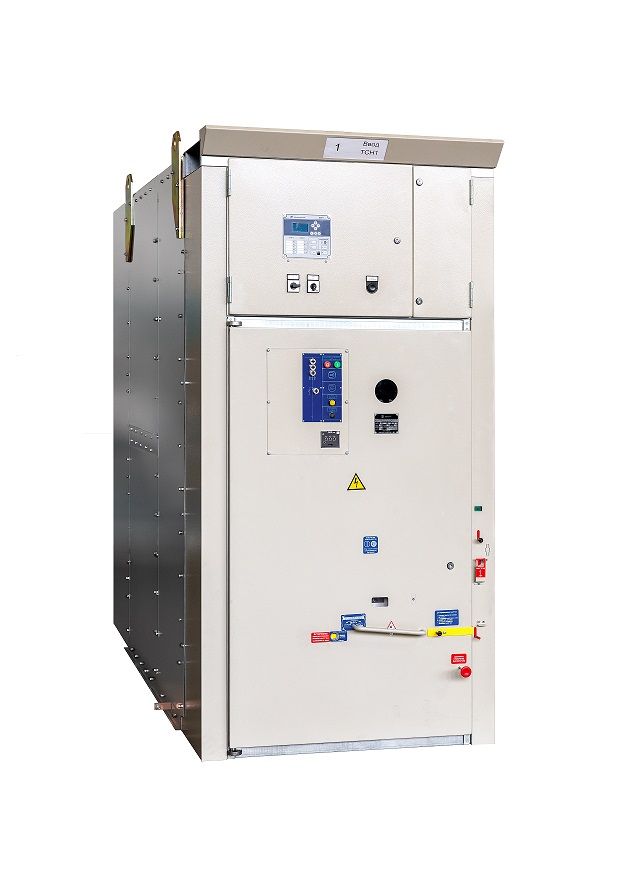

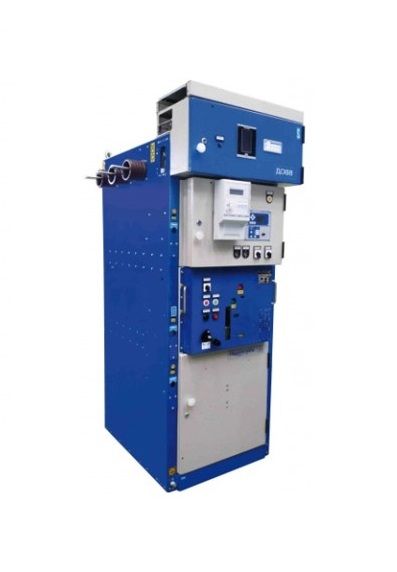

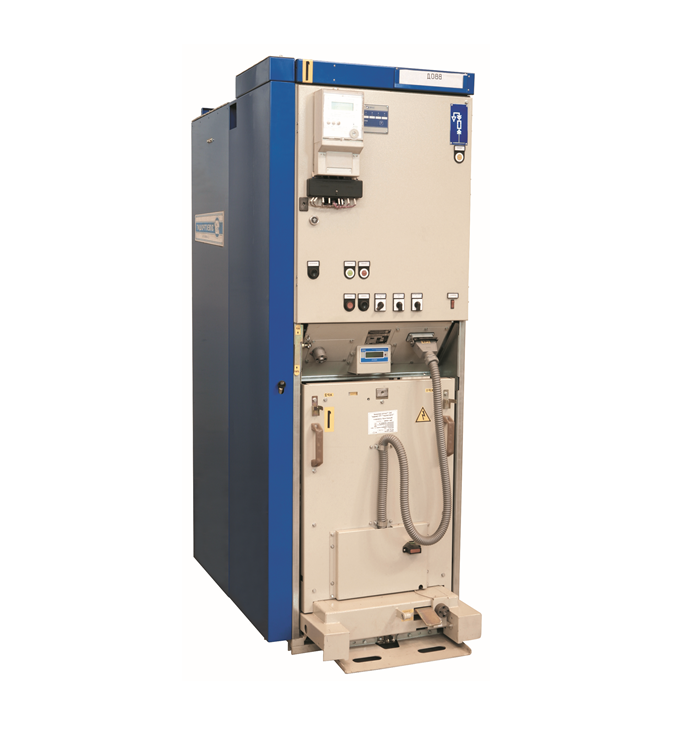

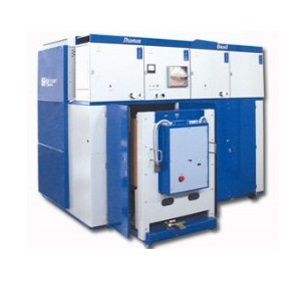

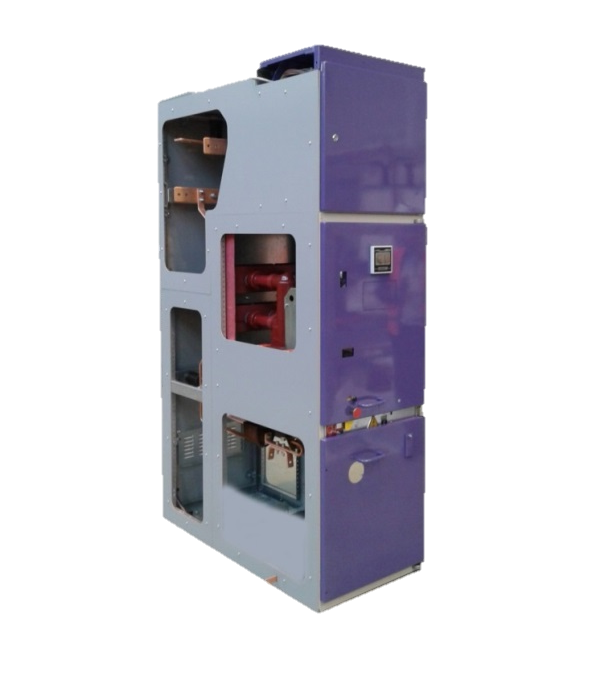

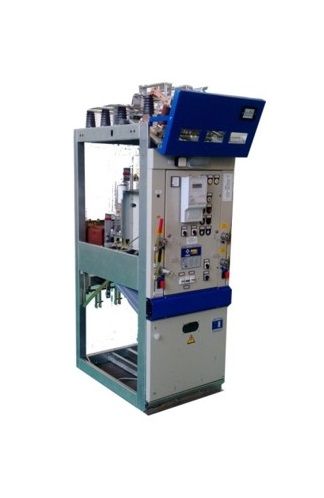

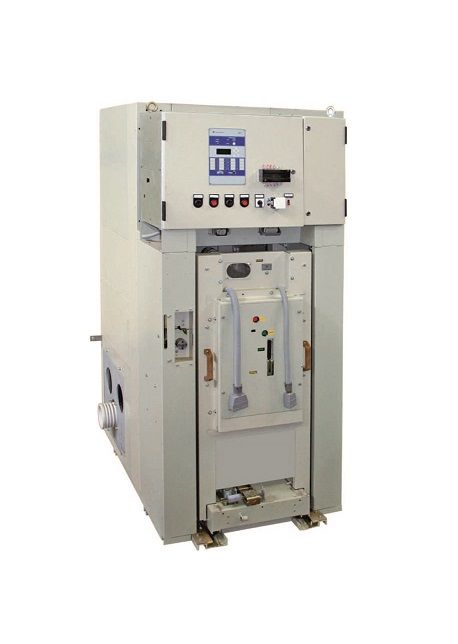

Series KRU-SESH-70-10 KRU-SESH-70-20 KRU-SESH-70-35 KRU-SESH-65 KRU-SESH-65ZD KRU-SESH-59 KRU-SESH-61М KRU-SESH-63 KRU-SESH-75 KSO-298M
Voltage class, kV 6; 10 20 35 35 27,5 6;10 6;10 6;10 6;10 6;10
Rated current of main circuits at frequency 50 Hz, A 630; 1 000; 1 250; 1 600; 2 000; 2 500; 3 150; 4 000 630; 1 000; 1 600; 2 000; 2 500 630; 1 000; 1 600; 2 500 1 000; 1 600 1 600; 2 000 630; 1 000; 1 600; 2 000; 2 500; 3 150 630; 1 000; 1 600; 2 000; 2 500; 3 150; 4000 630; 1 000; 1 250; 1 600; 2 000 630; 1 000; 1 250; 1 600 630; 1 000; 1 600
Rated breaking current of circuit-breaker, kA 20; 31,5; 40; 50 16; 20; 25 25 16; 20; 25 25 12,5; 20; 31,5 25; 31,5; 40 20; 25; 31,5; 40 20 20
Service conditions One-sided (Double-sided) One-sided (Double-sided) Double-sided One-sided One-sided Double-sided Double-sided Double-sided One-sided One-sided
Climatic version U3 U3 U3 UHL1; U3 UHL1; U3 HL1; U1 T3 U3; T3 U3 U3
Dimensions: Width х Depth х Height 650,750(1000)х1400(1500)х2400(2650) 750(1000)х1599х2400 1200х2960х2444 1500(2250)х3399х3903(4550),
1500(2250)х1860(2950)х2710(3094)
1000(1750)х1600,2690х2710(3960),
1500(2250)х1600,2690х2710(3960)
750(1060)х1250х2200 750х1400(1600)х2268, 1125х1400(1775)х2268 750х1165(1365)х2268 750х900х2200 750(1000)х1100х2366
