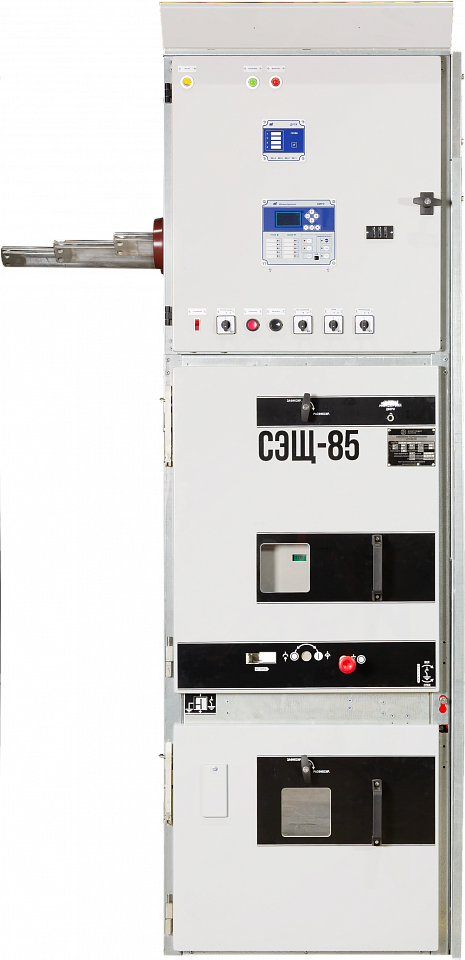

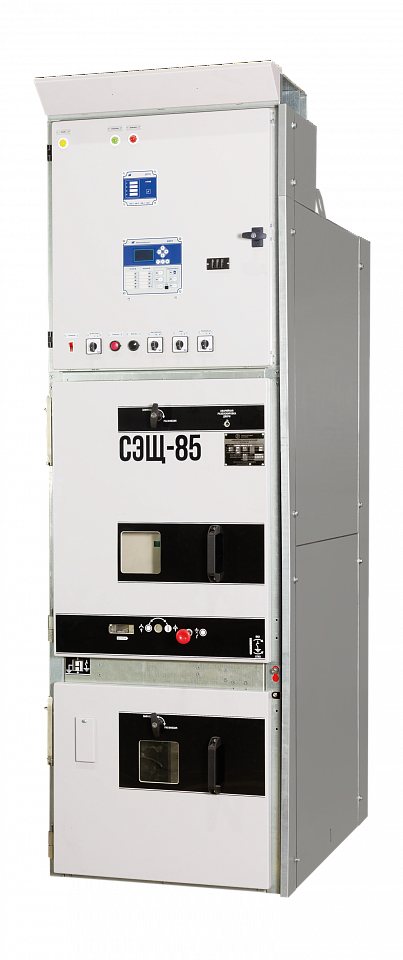

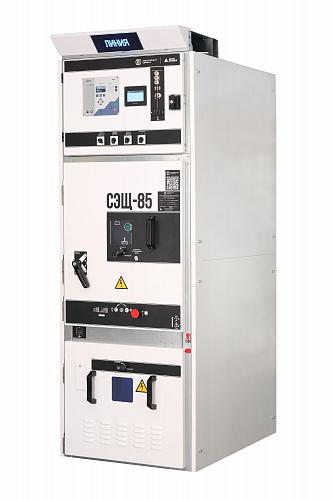

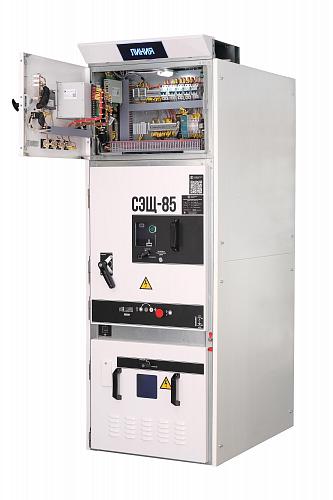

MV Switchgear SESH-85 up to 12 kV
New
Rated voltage, kV
up to 12
Rated current of main circuits, A
630-1600
Short time withstand current, kA
20; 31,5
Overall dimensions (W×H×D, mm)
750 × 2583(2100) × 1100
Production time
Under the order
Total dimensions (HxWxD, cm)
258,3(210) x 75 x 110
Price on request
In stock
Production time
Under the order
Total dimensions (HxWxD, cm)
258,3(210) x 75 x 110
Description
MV Switchgear SESH-85 is a modern and safe complete medium-voltage switchgear with air insulation in the range of equipment produced by Electroshiled Samara, which meets the highest requirements not only of Russian but also of international standards.SAFETY
- Compliance with two current Russian standards GOST R 55190 (based on IEC 62271-200) and GOST 14693
- Electrical and mechanical position indicators of all devices (truck, circuit breaker, earthing switch)
- Internal arc classification IAC AFLR 31.5 kA 0.2 sec with deflector which provides personnel protection from three sides in the event of internal arc faults
- Well-designed system of mechanical and electromagnetic interlocks preventing incorrect operations
- Remote control of the truck and the earthing switch with CCTV (optional)
EASY TO USE
- Safe discharge of combustion product directly into the existing room without the need of the tunnel for internal arcing gases;
- Unified user interface;
- One-sided maintenance;
- Simple access to documentation via digital passport;
HIGH RELIABILITY
- Full scope of type (periodic) tests has been performed in Russian accredited laboratories;
- Additional tests beyond the mandatory test program have also been successfully passed, including seismic withstand, fast automatic transfer switch (Fast ATS), wireless temperature monitoring;
- All major components (circuit breaker, current and voltage transformers, earthing switch) are produced by Electroshield Samara;
- Wireless temperature monitoring is optionally available for online temperature monitoring of contacts and contact connections;
- Wide operating temperature range from -45 to +40 °C
Digital options
CONTACT CONNECTION TEMPERATURE MONITORING SYSTEM
- Overheating alarm
- Data collection from the entire switchgear
- Support for MODBUS-TCP, IEC-60870, IEC-61850
WIRELESS TEMPERATURE SENSORS
- Wireless data transmission
- Continuous temperature monitoring
- No additional power supply required
MOTOR DRIVE OF THE TRUCK AND EARTHING SWITCH
- Remote control
- Safe operation
DIGITAL TWIN OF MV SWITCHGEAR SESH-80
- Condition-based maintenance (CBM)
- Actual technical state evaluation of the switchgear cubicle
DIGITAL PASSPORT
- Online access to the documentation via QR-code
- Prevents loss of technical documentation
CCTV
- Maximum personnel safety
- Switchgear cubicle condition monitoring
- Remote operational maintenance
DIGITAL OPTIONS
|
CONTACT CONNECTION TEMPERATURE MONITORING SYSTEM
|
|
WIRELESS TEMPERATURE SENSORS
|
|
MOTOR DRIVE OF THE TRUCK AND EARTHING SWITCH
|
 |
DIGITAL TWIN OF MV SWITCHGEAR SESH-80
|
|
DIGITAL PASSPORT
|
|
CCTV
|
Technical information
| Characteristic | Value |
|---|---|
| Rated voltage, kV | up to 12 |
| Rated current of main circuits, A | 630-1600 |
| Short time withstand current, kA | 20; 31,5 |
| Overall dimensions (W×H×D, mm) | 750 × 2583(2100) × 1100 |
Technical information
| Characteristic | Value |
|---|---|
| Rated voltage, kV | up to 12 |
| Rated current of main circuits, A | 630-1600 |
| Short time withstand current, kA | 20; 31,5 |
| Overall dimensions (W×H×D, mm) | 750 × 2583(2100) × 1100 |
