MV switchgear SESH-80 up to 12 kV
New
Rated voltage, kV
up to 12
Rated current of main circuits, A
630; 800; 1000;
1250; 1600; 2000;
3150; 4000
1250; 1600; 2000;
3150; 4000
Rated short-circuit breaking current, kA
20; 25; 31,5; 40; 50
Overall dimensions (W×H×D, mm)
600 (750, 1000) × 2715 × 1650
Production time
Under the order
Total dimensions (HxWxD, cm)
271,5 x 60 (75, 100) x 165
Price on request
In stock
Production time
Under the order
Total dimensions (HxWxD, cm)
271,5 x 60 (75, 100) x 165
Description
MV switchgear SESH-80 is the most advanced and safest medium voltage switchgear in the product line produced by Electroshield Samara, meeting the highest requirements of both Russian and international standards.
FIELDS OF APPLICATION
- oil and gas industry
- coal and metallurgical industry
- power distribution networks of energy complexes
- industrial enterprises
- auxiliary power supply systems of power plants, including nuclear power plants
SAFETY
- Compliance with two current Russian standards GOST R 55190 (based on IEC 62271-200) and GOST 14693
- Electrical and mechanical position indicators of all devices (truck, circuit breaker, earthing switch)
- Internal arc classification IAC AFLR 50 kA 1 sec. (max.) with absorber / deflector
- Provides personnel protection from four sides in the event of internal arc faults
- Well-designed system of mechanical and electromagnetic interlocks preventing incorrect operations
- Remote control of the truck and the earthing switch with CCTV (optional)
HIGH RELIABILITY
- Full scope of type (periodic) tests has been performed in Russian accredited laboratories
- Additional tests beyond the mandatory test program have also been successfully passed
- Including seismic withstand, fast automatic transfer switch (Fast ATS), wireless temperature monitoring
- Making capacity endurance of the earthing switch up to 40 kA - class E1 (two making operations)
- All major components (circuit breaker, current and voltage transformers, earthing switch) are produced by Electroshield Samara
- Wireless temperature monitoring is optionally available for online temperature monitoring of contacts and contact connections
EASY TO USE
- Safe discharge of combustion product directly into the existing room without the need of the tunnel for internal arcing gases
- Unified user interface
- One-sided / double-sided maintenance
- No support insulators in the busbar compartment
- Simple access to documentation via digital passport
Digital options
CONTACT CONNECTION TEMPERATURE MONITORING SYSTEM
- Overheating alarm
- Data collection from the entire switchgear
- Support for MODBUS-TCP, IEC-60870, IEC-61850
WIRELESS TEMPERATURE SENSORS
- Wireless data transmission
- Continuous temperature monitoring
- No additional power supply required
MOTOR DRIVE OF THE TRUCK AND EARTHING SWITCH
- Remote control
- Safe operation
DIGITAL TWIN OF MV SWITCHGEAR SESH-80
- Condition-based maintenance (CBM)
- Actual technical state evaluation of the switchgear cubicle
DIGITAL PASSPORT
- Online access to the documentation via QR-code
- Prevents loss of technical documentation

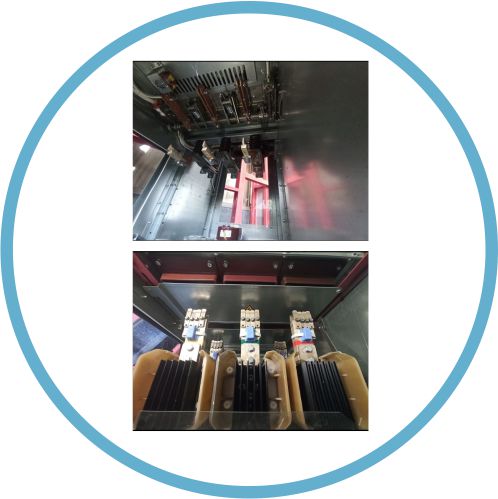

CCTV
- Maximum personnel safety
- Switchgear cubicle condition monitoring
- Remote operational maintenance
DIGITAL OPTIONS
|
CONTACT CONNECTION TEMPERATURE MONITORING SYSTEM
|
|
WIRELESS TEMPERATURE SENSORS
|
|
MOTOR DRIVE OF THE TRUCK AND EARTHING SWITCH
|
 |
DIGITAL TWIN OF MV SWITCHGEAR SESH-80
|
|
DIGITAL PASSPORT
|
|
CCTV
|
Technical information
| Characteristic | MV switchgear SESH-80-10H (with roll-on-floor VCB) | MV switchgear SESH-80-10C |
|---|---|---|
| Rated voltage, kV | up to 12 | up to 12 |
| Rated current of main circuits, A | 630; 800; 1000; 1250; 1600; 2000; 3150; 4000 | 630; 800; 1000; 1250; 1600; 2000 |
| Rated short-circuit breaking current, kA | 20; 25; 31,5; 40; 50 | 20; 31,5 |
| Overall dimensions (W×H×D, mm) | 600 (750, 1000) × 2715 × 1650 | 600 (750, 1000) × 2800 × 1400 |
Technical information
| Characteristic | MV switchgear SESH-80-10H (with roll-on-floor VCB) | MV switchgear SESH-80-10C |
|---|---|---|
| Rated voltage, kV | up to 12 | up to 12 |
| Rated current of main circuits, A | 630; 800; 1000; 1250; 1600; 2000; 3150; 4000 | 630; 800; 1000; 1250; 1600; 2000 |
| Rated short-circuit breaking current, kA | 20; 25; 31,5; 40; 50 | 20; 31,5 |
| Overall dimensions (W×H×D, mm) | 600 (750, 1000) × 2715 × 1650 | 600 (750, 1000) × 2800 × 1400 |
